Touch keypad

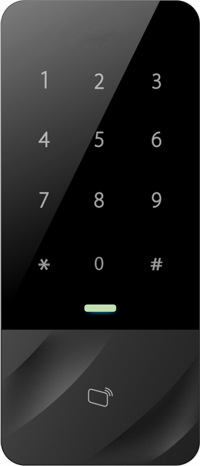

Wiegand Touch keypad and RFID receiver
| Model number: | TK-FR-B | Touch keypad, RFID card reader EM 125 kHz, black |
|---|---|---|
| Mounting: | Field, on wall | |
| Connection: | Wiegand to Card reader interface | |
Technical specifications
| Power supply: | 9-15 VDC / 200mA |
| Reading Distance: | 3-6 cm |
| Card interface: | EM 125 kHz |
| Output Interface: | Wiegand 26 |
| Dimensions: | 62 x 23 x 142 mm |
Wiring
| TK-FR-B | CR-W2-IQ | MC-230-3W | Notes | ||
|---|---|---|---|---|---|
| 1st | 2nd | 1st | 2nd | ||
| RD | +12V | +12V | Power supply | ||
| BK | GND | GND | |||
| GN | D0-0+1 | D0 | Wiegand data | ||
| WH | D1-0 | D1-1 | D1-0 | D1-1 | |
| BU | GN-0 | GN-1 | GN-0 | GN-1 | LED indicator |
| YE | - | - | Beep | ||
| GY | - / GND | - / GND | Wiegand 26 / 34 | ||
