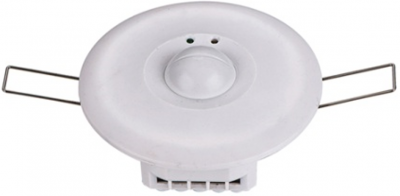

Motion sensor
Microwave detector ceiling recessed
| Model number: | MW-C18-LC |
|---|---|
| Connects to: | digital input |
| Mounting: | Wall or ceiling |
| Dimensions: | 98mm x 55mm |
Applications
- Motion detector
- Ready light
- Lighting control
- Hotel GRMS
Features
- Aestetical look
- Easy mount
Installation instruction
- Ensure that there are no obstructions (plants, screens, furniture etc.) in the field of view that may cause incorrect cover/operation of the detector.
- Install the detector at proper height on a rigid surface. Do not install the detector on vibrating surface.
Technical specifications
| Power supply | 24 VDC |
| Power consumption | 0.3W stand-by; 0.8W triggered |
| Temperature | -20°C ~ 50°C |
| Humidity | < 93% non condensing |
| Output contact rating | 100,000 cycles @ 24 VDC, < 9mA |
| Range | 2-18 m (Adjustable) |
| Installing height | Max. 3.5 m |
| Power frequency | 5.8 GHz +/- 75MHz |
| Ambient light | 10~2000LUX (Adjustable) |
| Detection | 360 deg |
Terminals
| Power supply | IN + | Power supply |
|---|---|---|
| IN - | ||
| Digital Input Signal | OUT + | Sensor Output |
| Common | OUT - |
