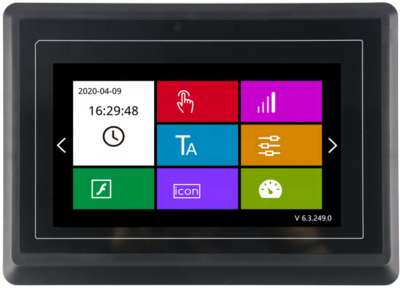

Touch panel 7 inch
| Model number: | TGP-7A-01-IQ | |
|---|---|---|
| Mounting: | In-wall | |
| Connection: | RS485 to HIQ MC controller | |
| Frame colour: | Black |
Applications
- Home automation
- Lighting control
- Hotel GRMS
Technical specifications
| System | Display | TFT 7“ 1024 × 600 |
| Touch | Capacitive | |
| Brightness (cd/m²) | 230 | |
| Contrast | 800:1 | |
| Colour | 65K colour, 16-bit RGB | |
| Power | Adapter | 5-36V DC |

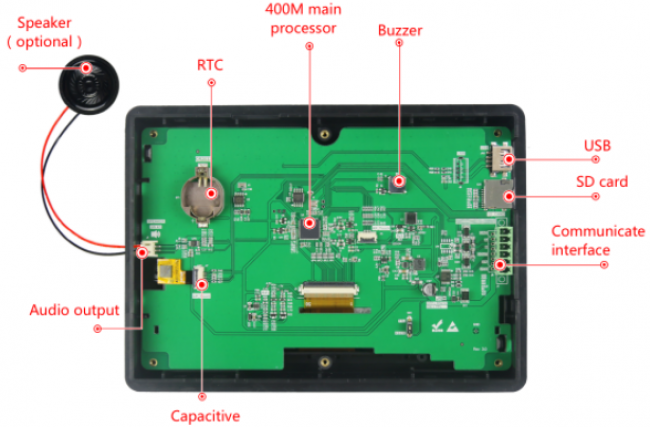

Internal components

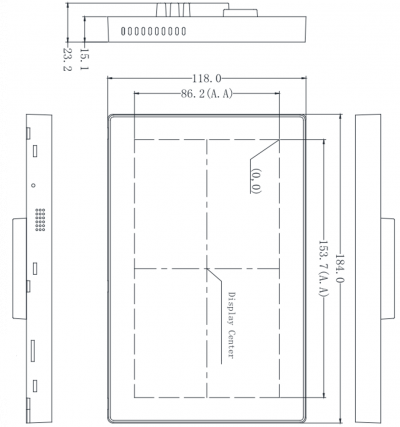

Dimensions
