HIQ commander

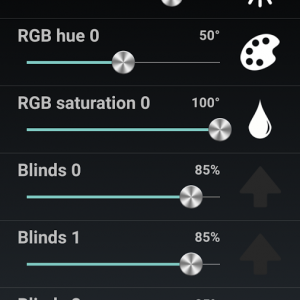

HIQ Commander is a smartphone application (iOS / Android). It allows the user to control lights, blinds, heating/cooling and alarm.
When started for the first time, the application automatically detects connected devices. The following devices are supported:
- light (on/off)
- dimmer (0..100%)
- RGB dimmer (0..100%, hue, saturation)
- blinds (up/down, move to position)
- scene (apply, inverse, memorize)
- thermostat (setpoint, temperature, humidity, fan speed)
- temperature (room, outdoor, water, wall)
- energy (energy/power consumption)
- alarm (4 zones)
For each device, the user can give a recognizable name and select an appropriate icon.
You can also control various devices, such as bathroom fans, table fans, electric heaters or audio/video systems. RGB dimmer includes a white temperature mode, which allows user to select between cold daylight and warm evening light. Thermostat allows for a separate temperature for each room.
HIQ Commander can work using a local network or through internet access, using HIQ Universe.
Configuration
 |

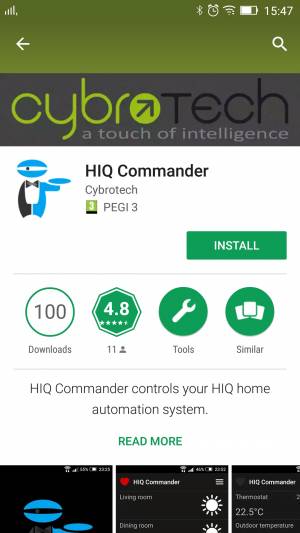

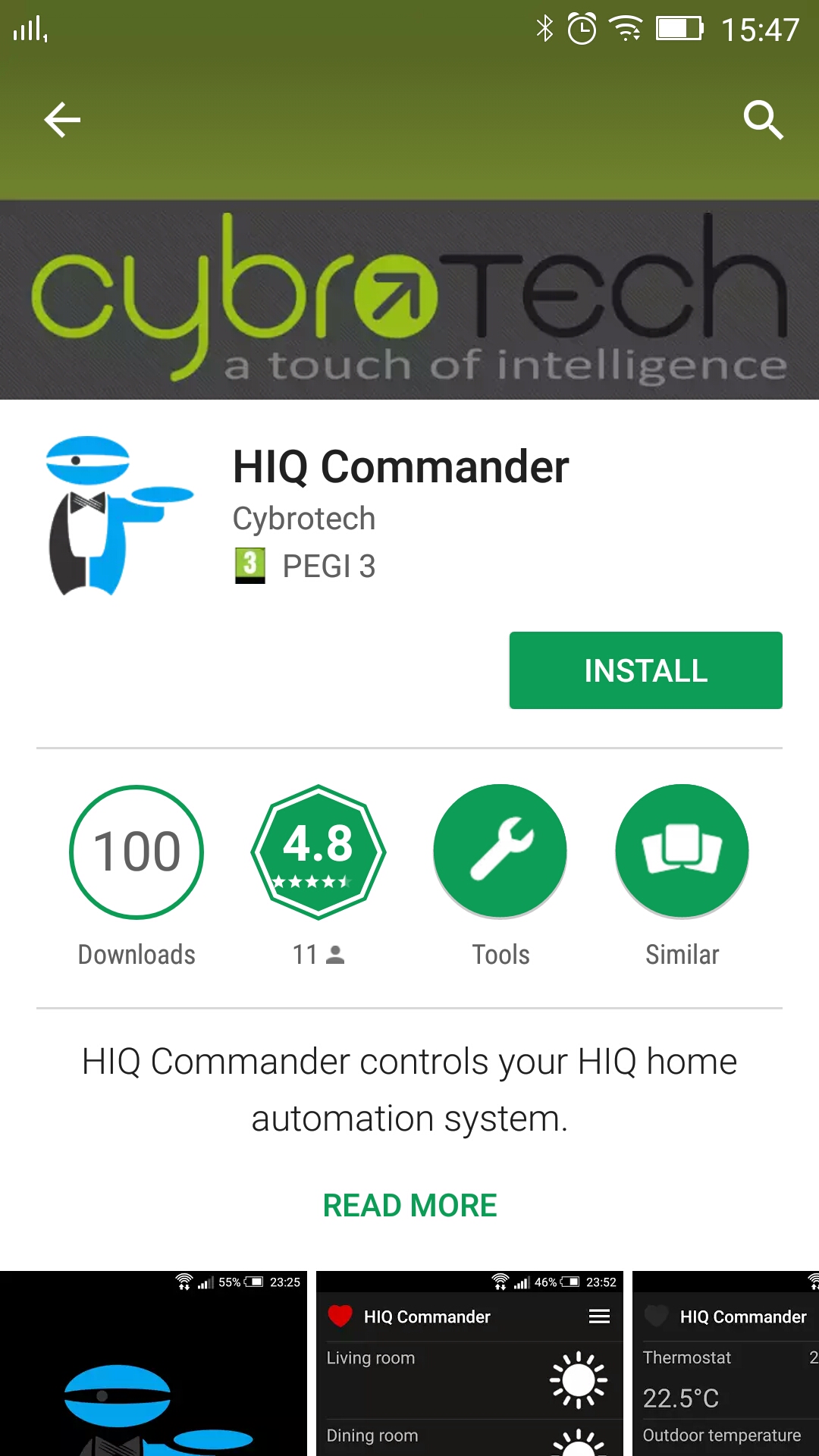

Download and install HIQ Commander
On smartphone (Android or iOS) go to Play Store or App Store.
Find and install HIQ Configurator app.
 |

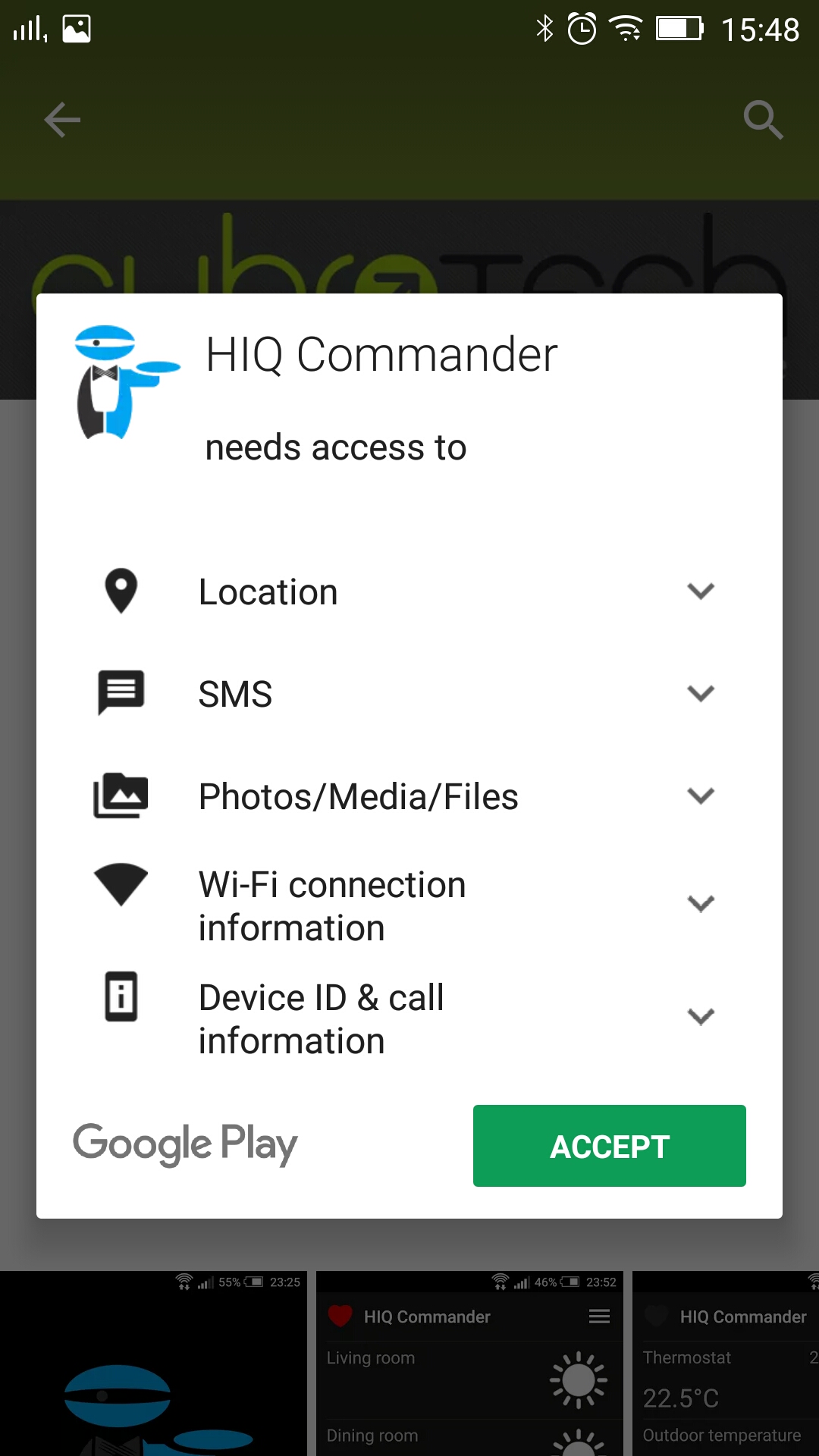

Accept all permissions
 |

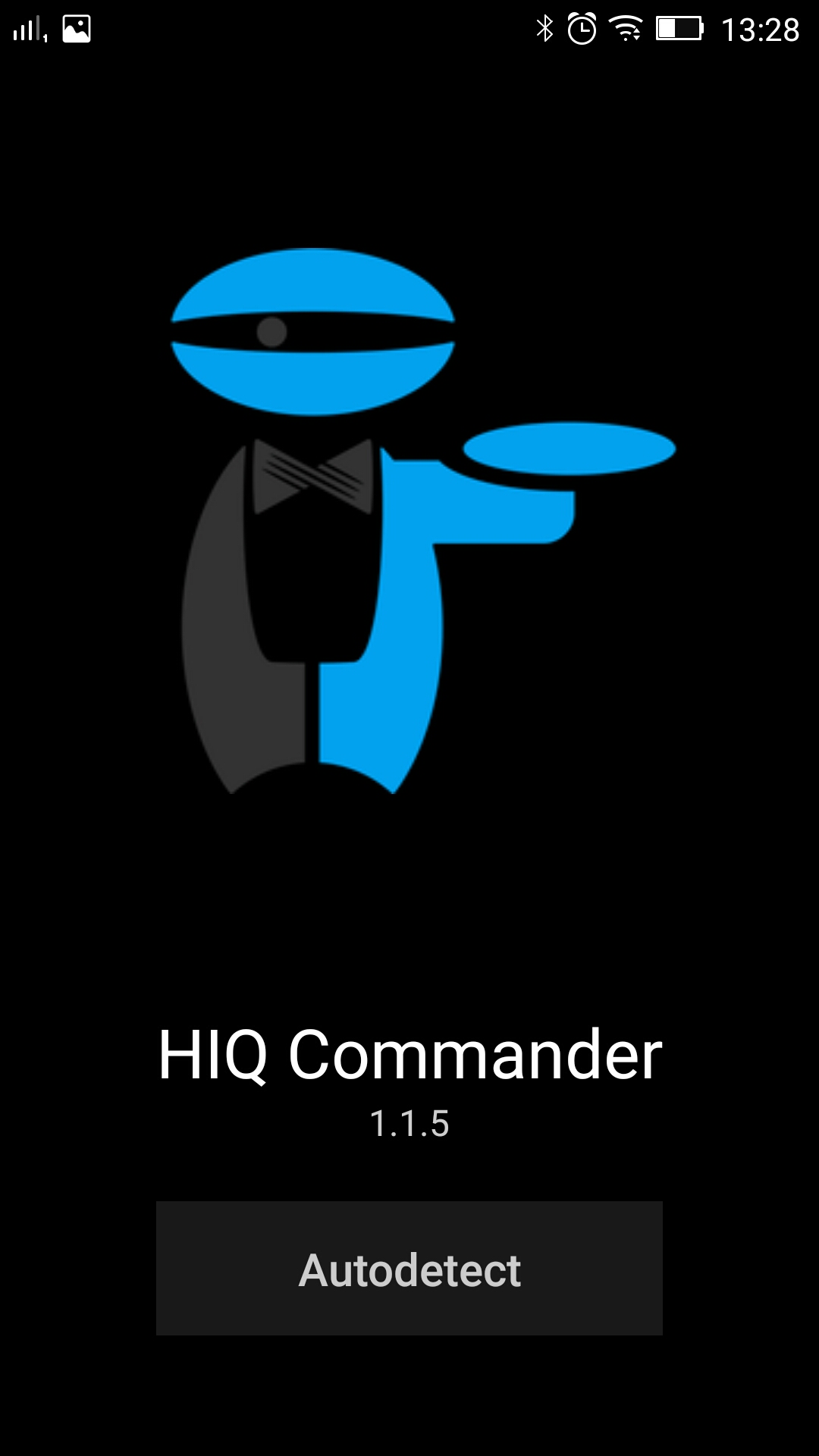

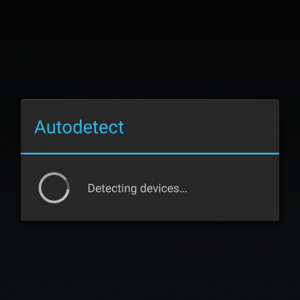

Run HIQ Commander and Autodetect HIQ System
HIQ system must be already configured/commisioned.
HC and your smartphone must be in the same local LAN/WiFi network and this network must be connected to the internet.
Other data connections (i.e. Mobile data) must be disabled.
 |

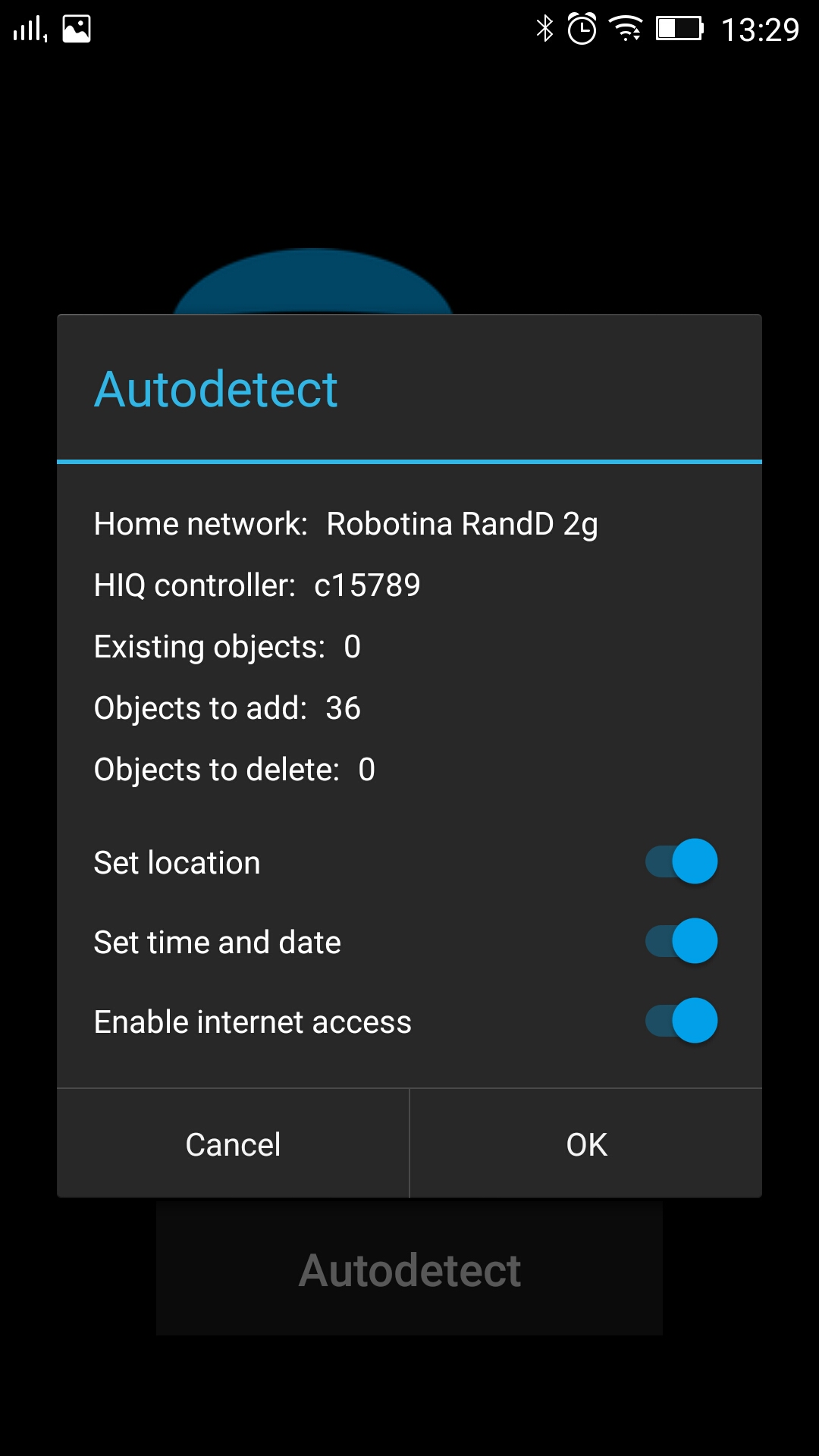

Accept detected system
Set location: used to calculate sunrise and sunset directly in HIQ Controller.
Set time and date: synchronize HIQ Controller time and date with smartphone.
Enable internet access: HIQ controller can be controlled from everywhere through HIQ Universe.
Use “Disable” if any of the services is not available on your device, otherwise Autodetect will not be possible.
 |

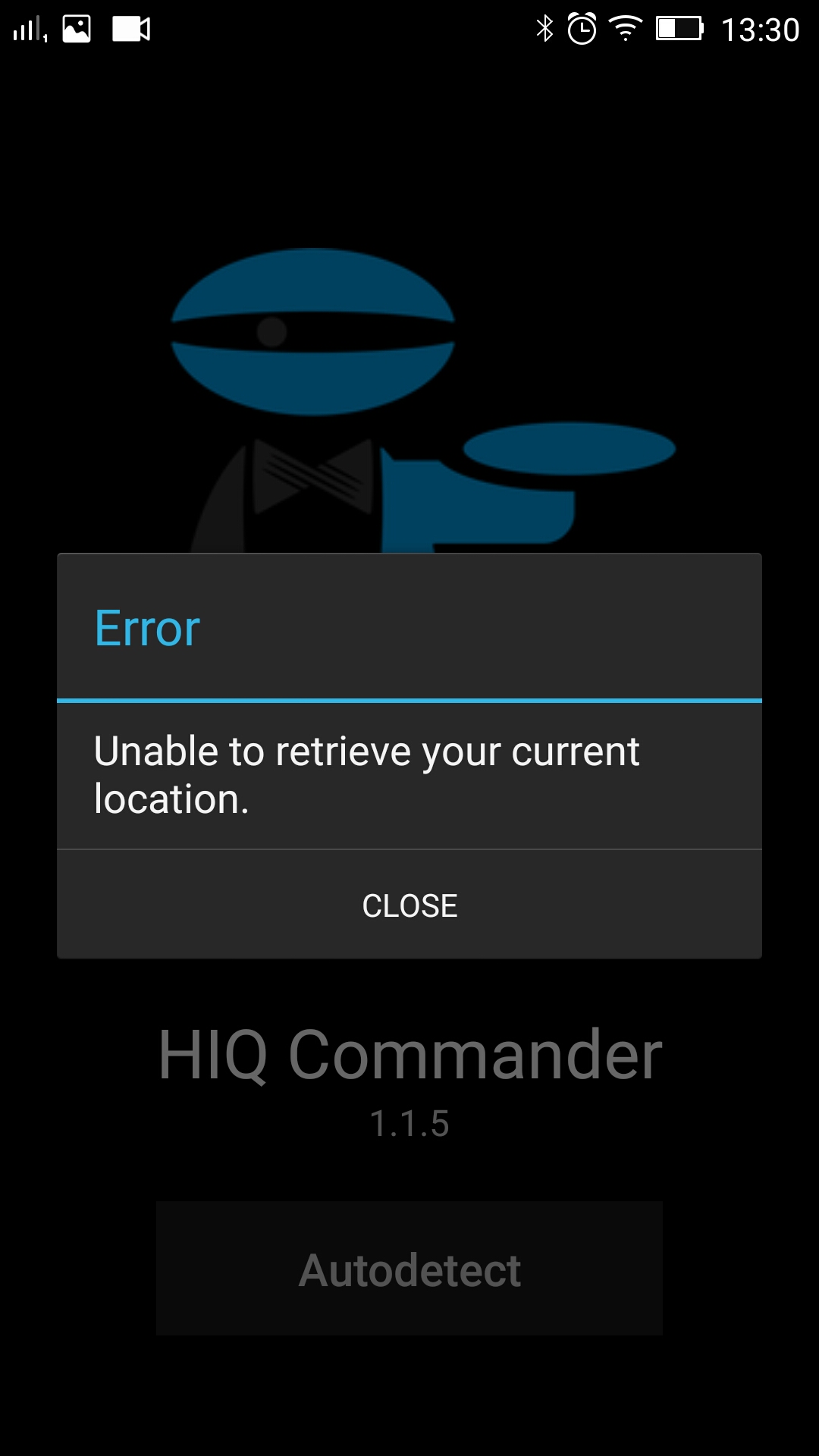

Error notification if location is not available within your phone/application.
In a case of an error notification disable that function.
 |

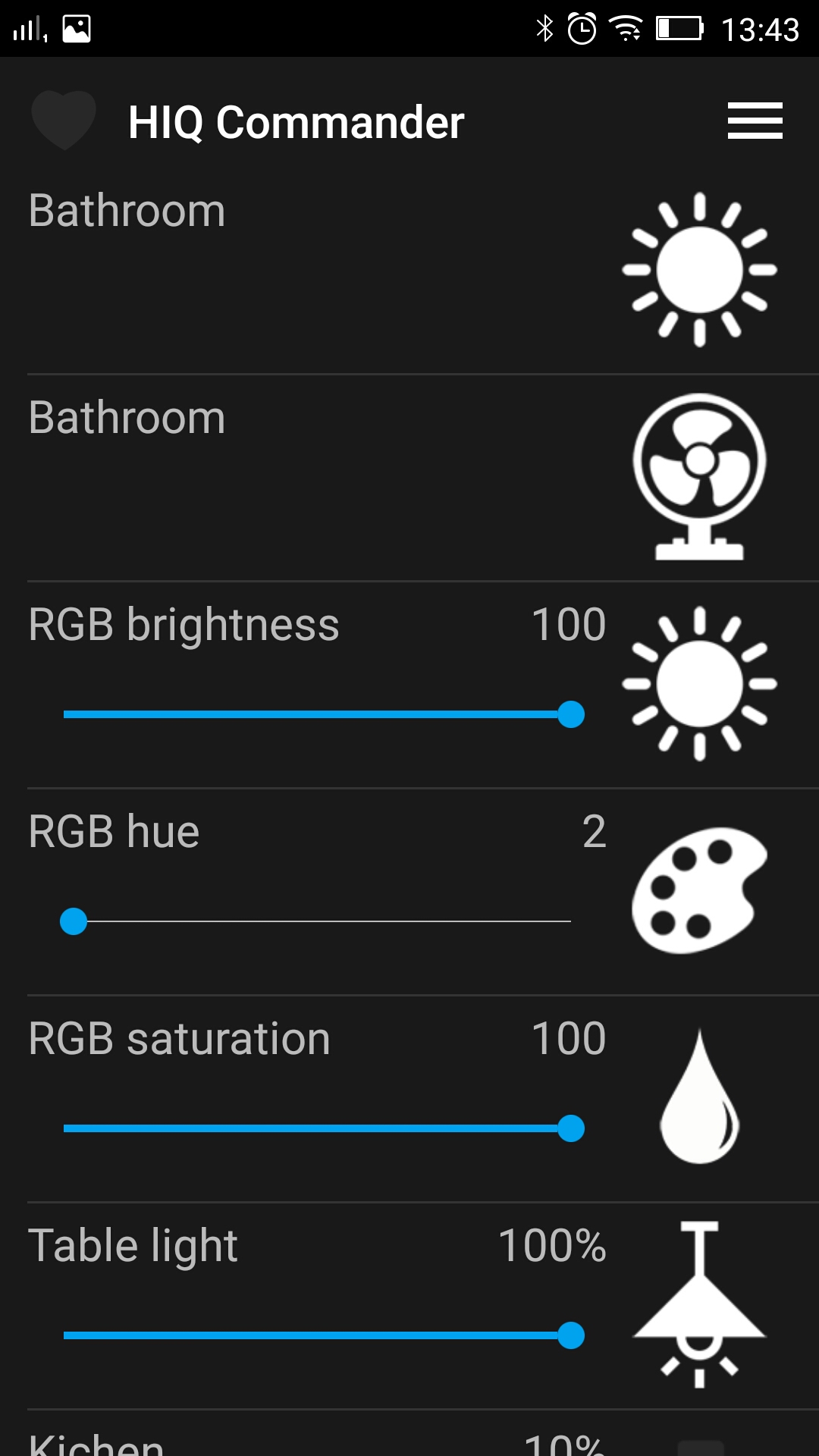

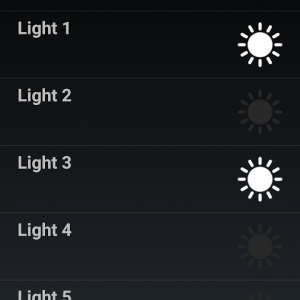

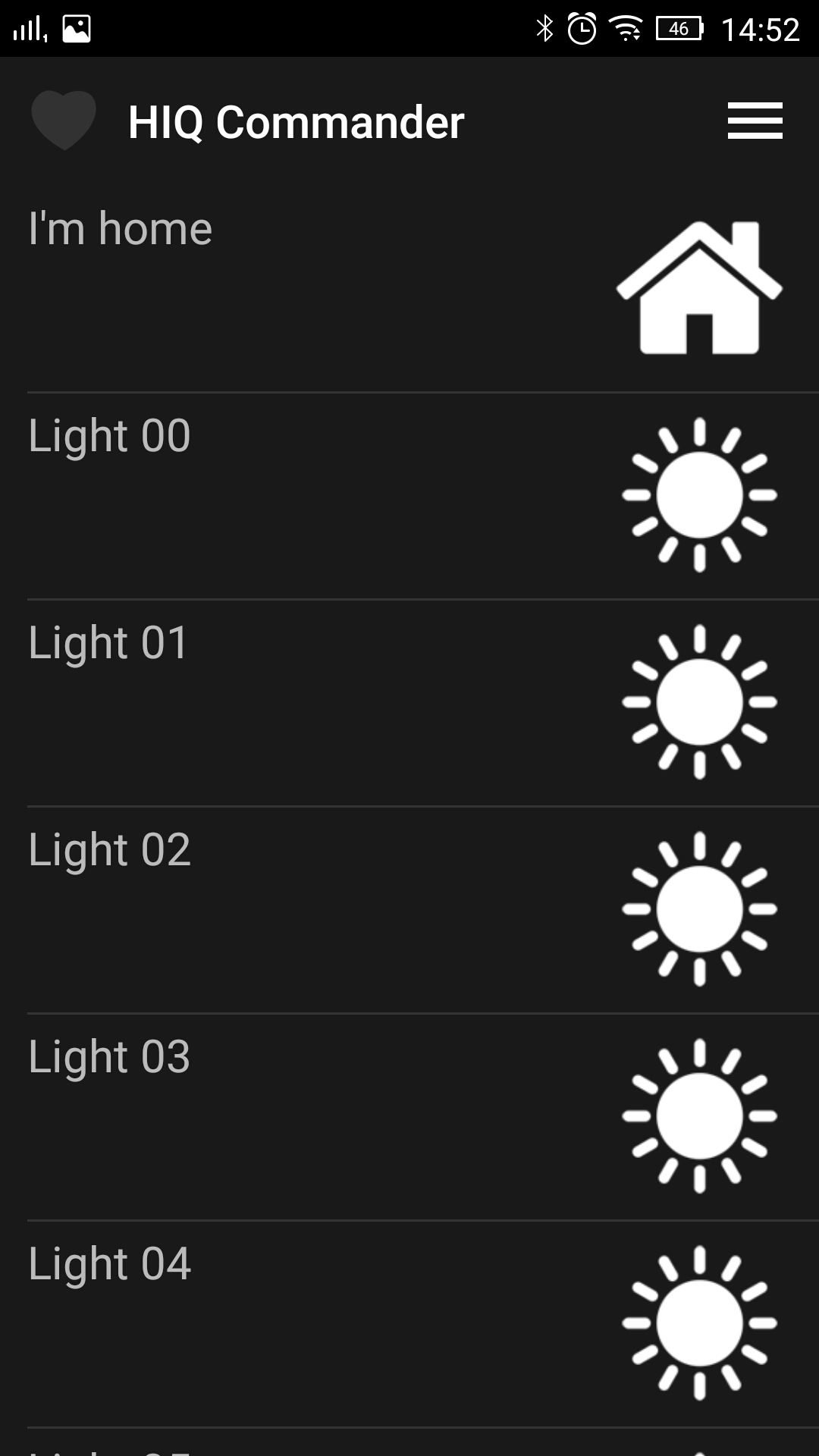

HIQ Commander basic screen with all available objects
 |

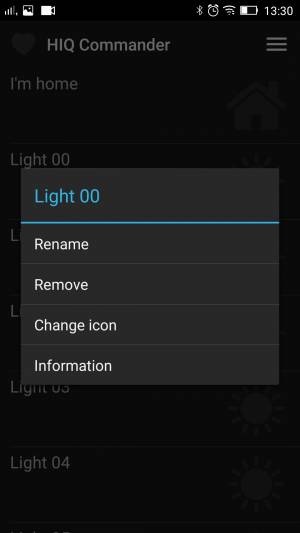

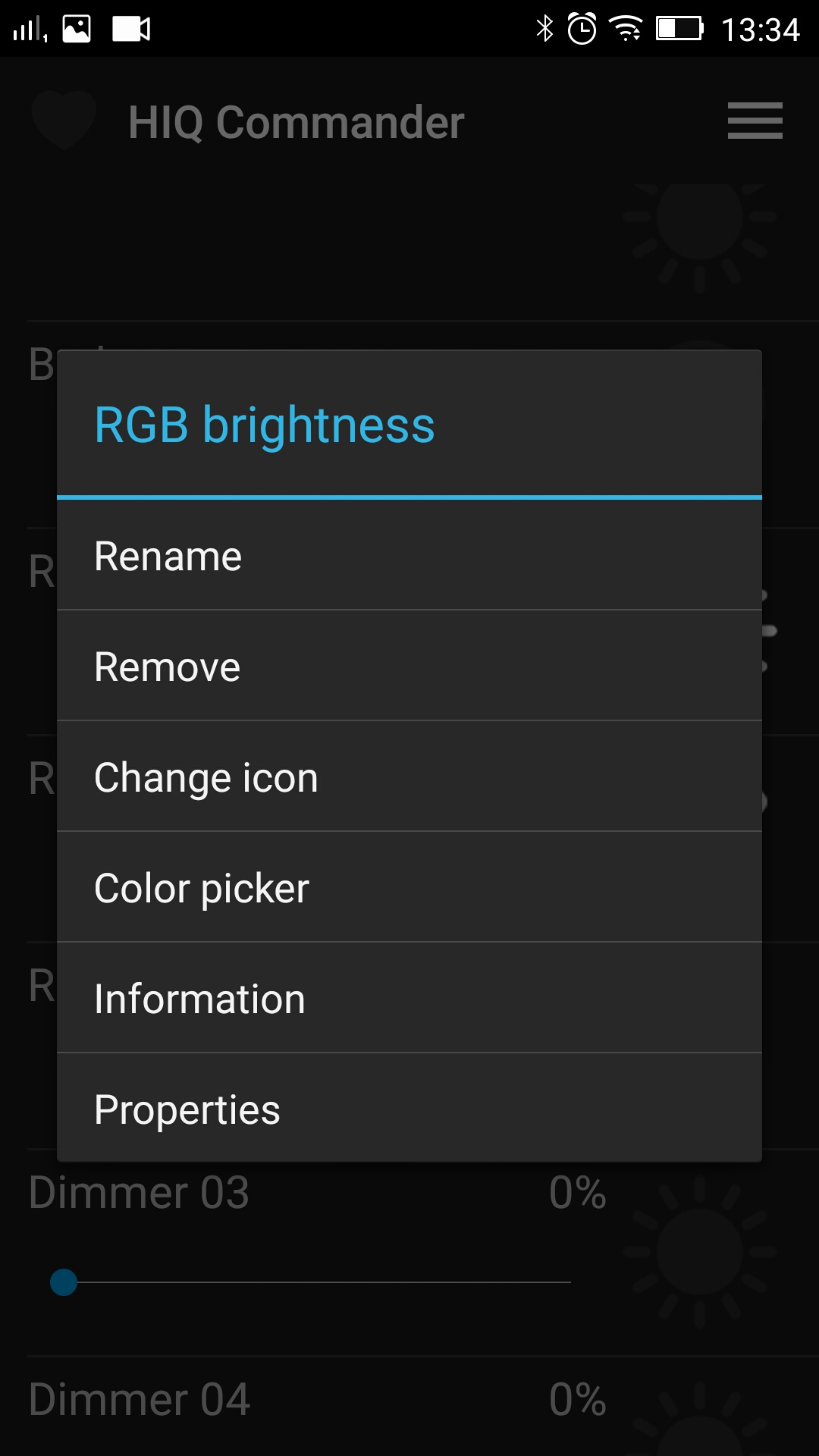

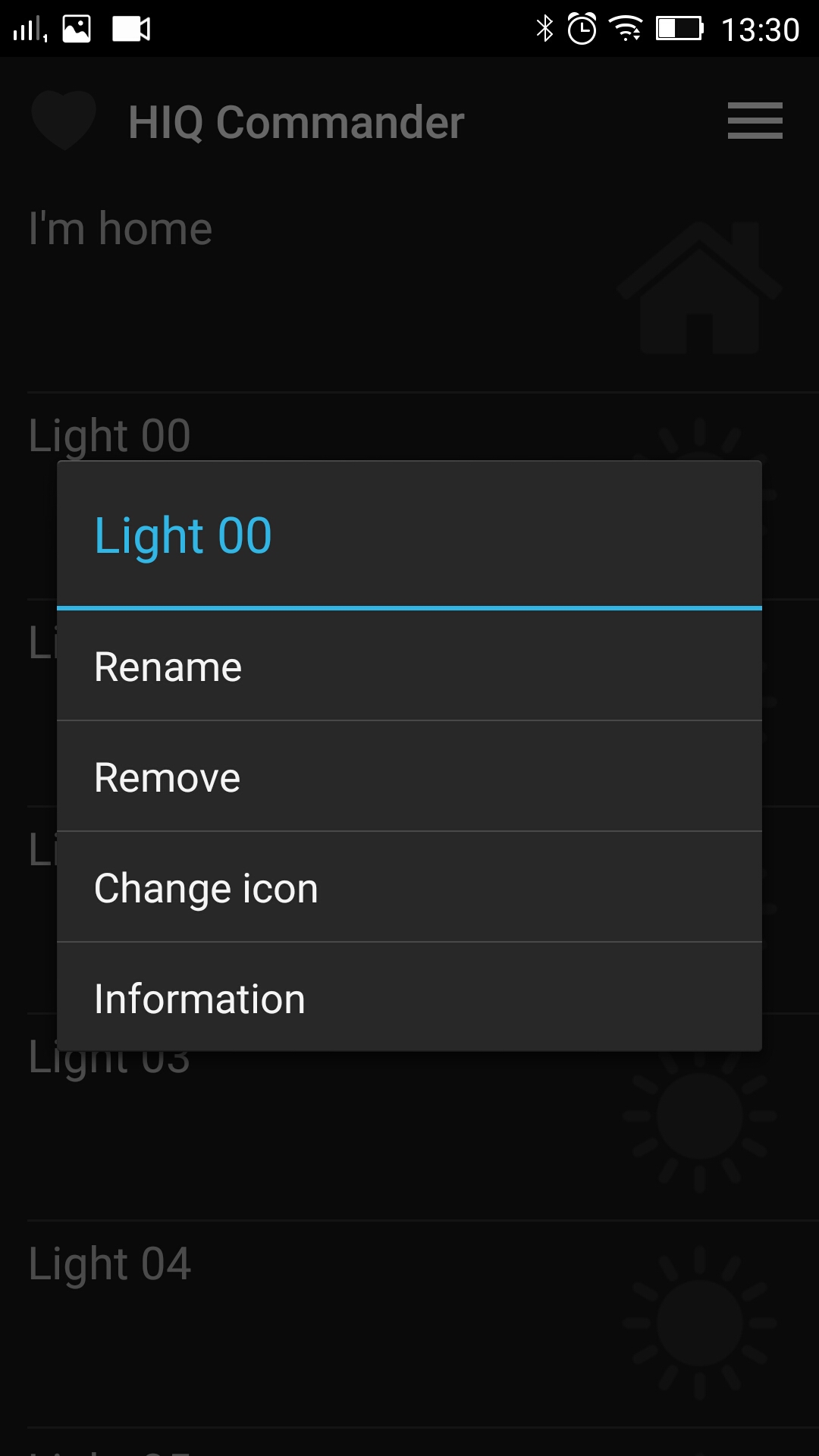

Use long press to open available options
“Remove” object if device is currently not installed. You can “Undelete” it later.
 |

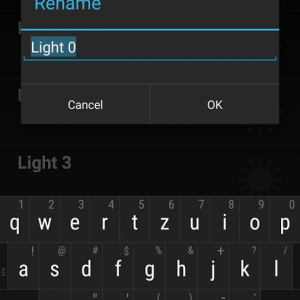

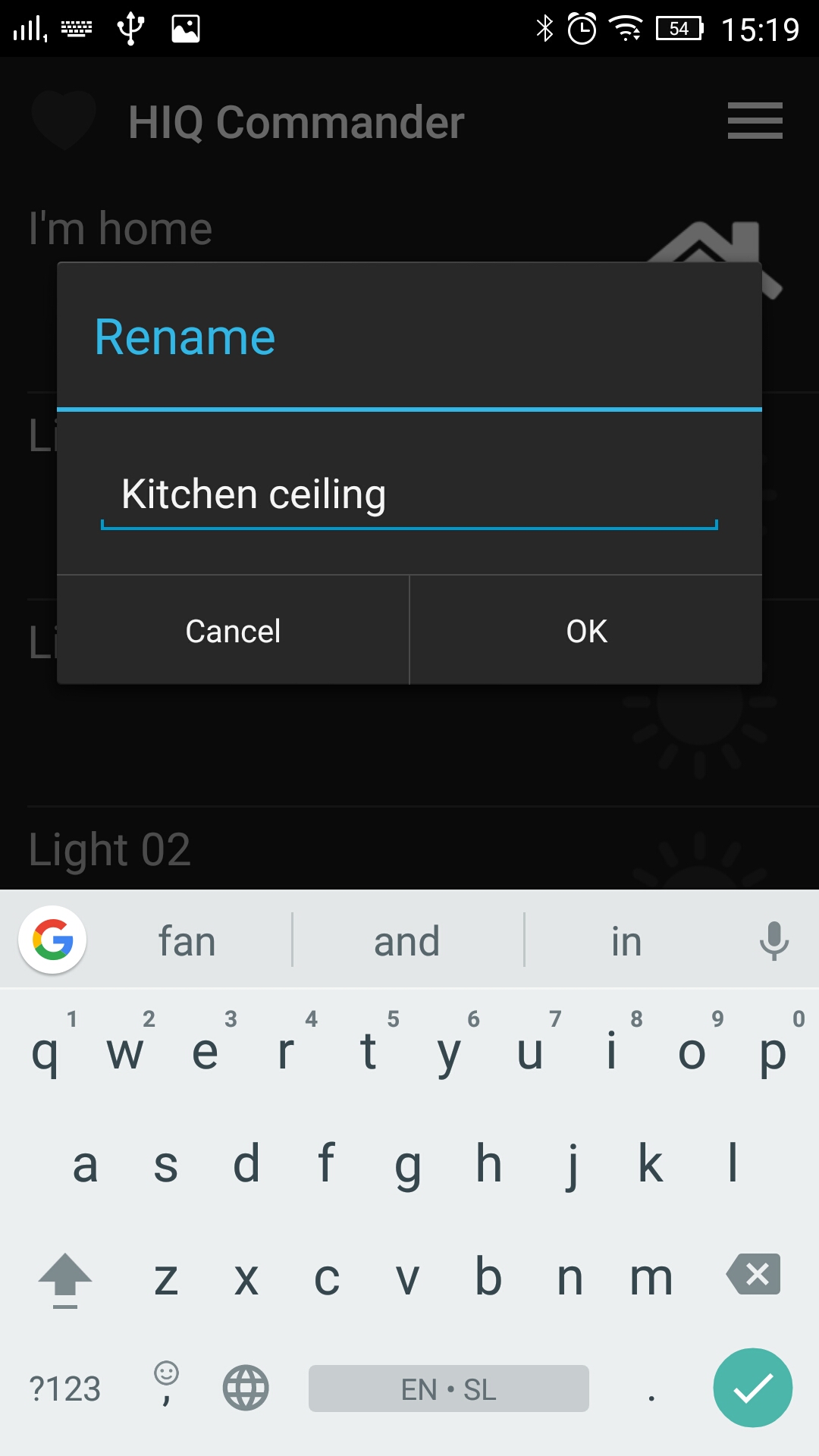

Rename object
Use recognizable names, depending on device type and location.
 |

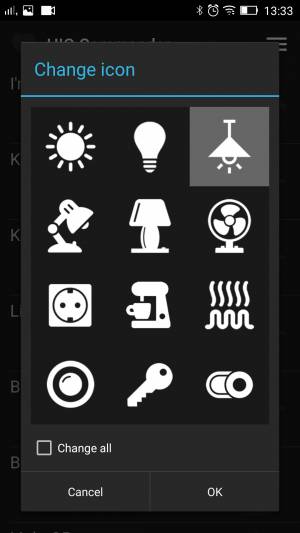

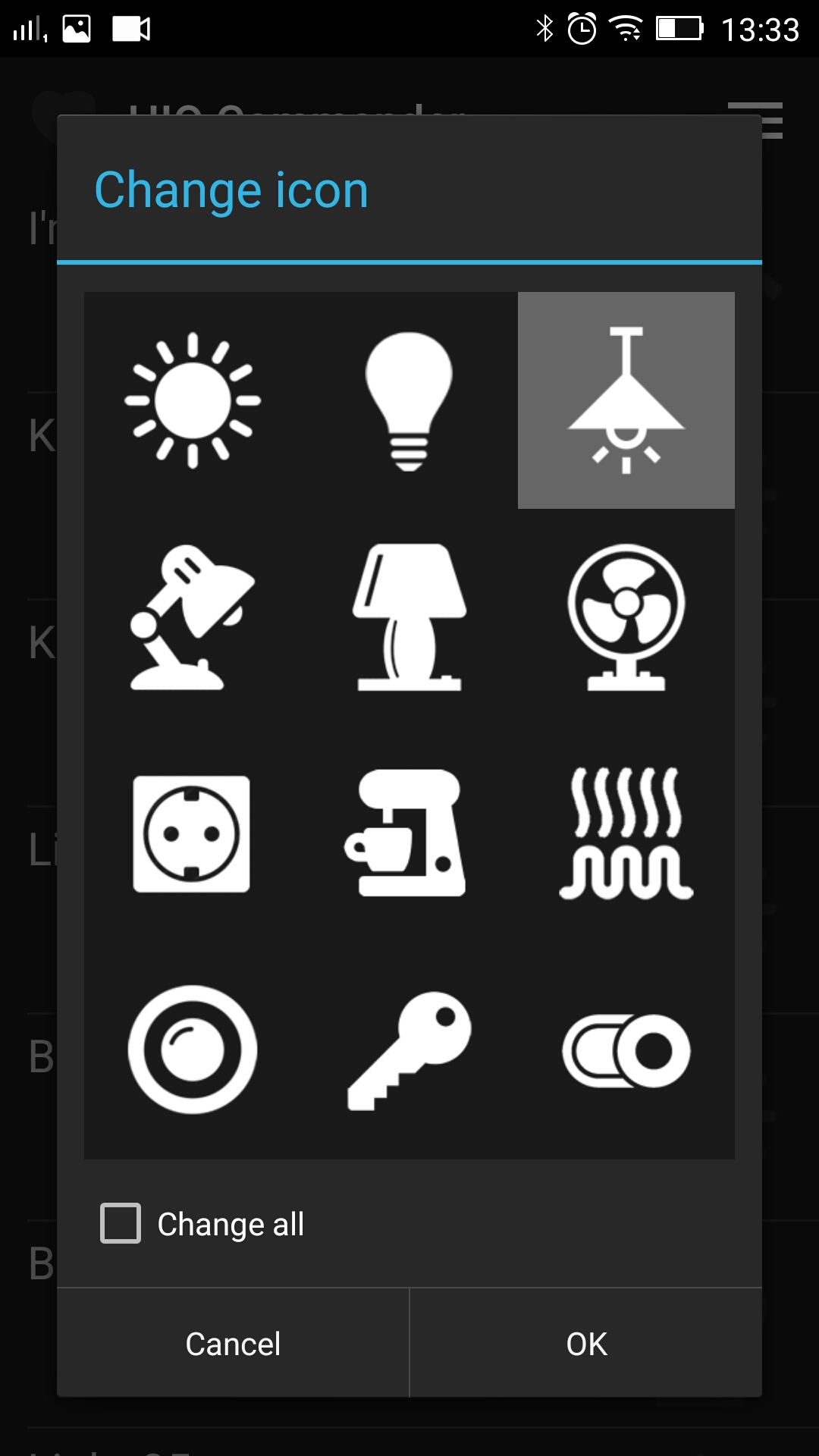

Change icon
Select icon, depending on the connected device.
 |

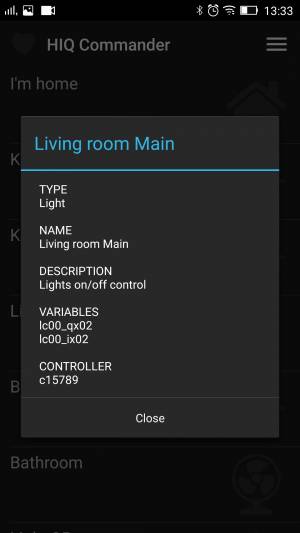

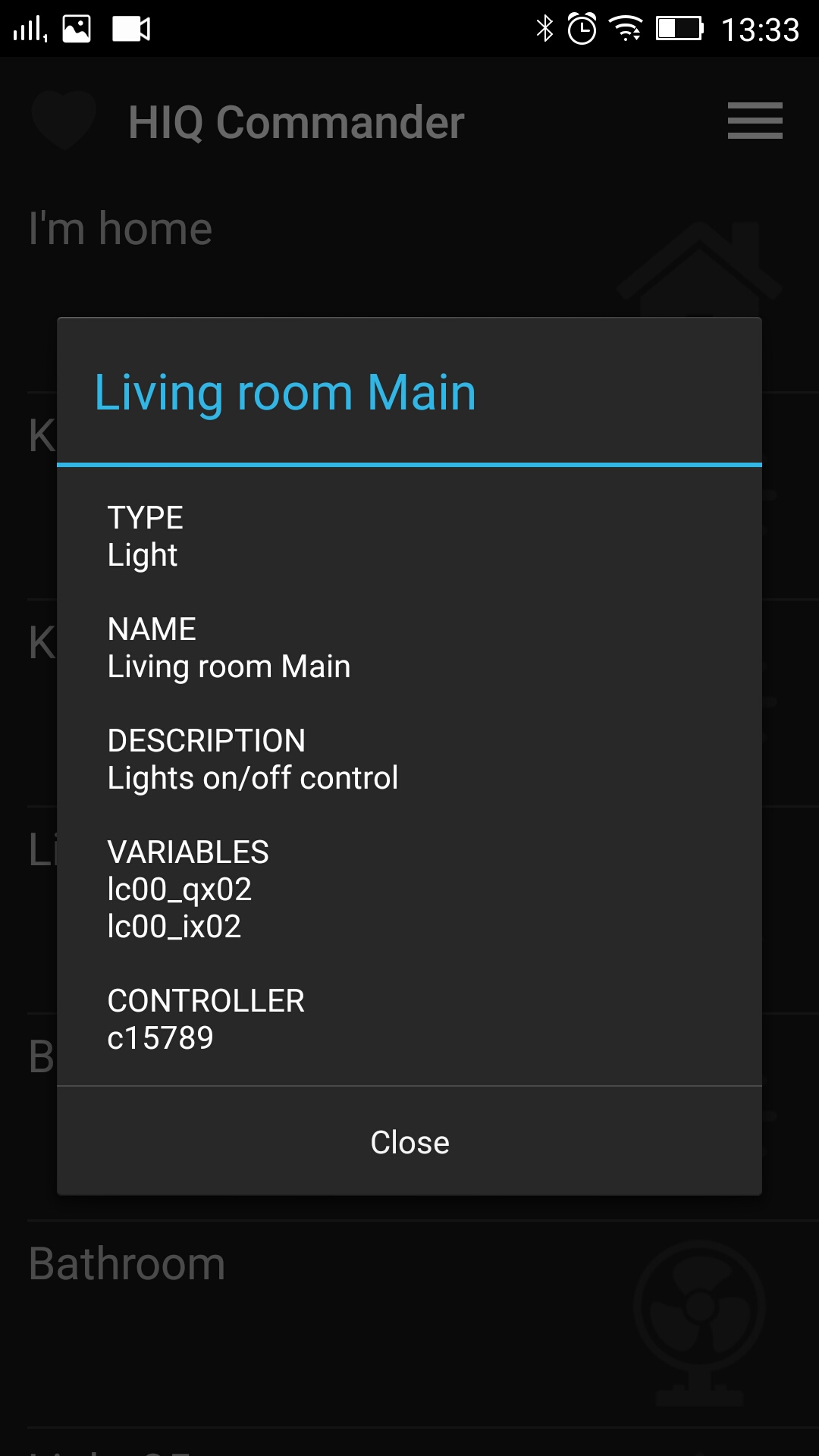

Object Information
Type, name, description, used variables and controllers used by an object. Used for easier identification.
 |
Properties
RGB dimmer, Thermostat, Scene and Alarm objects also offer properties.
 |

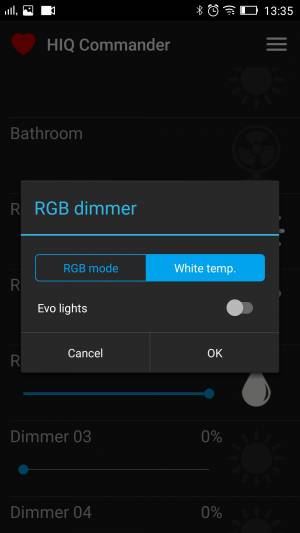

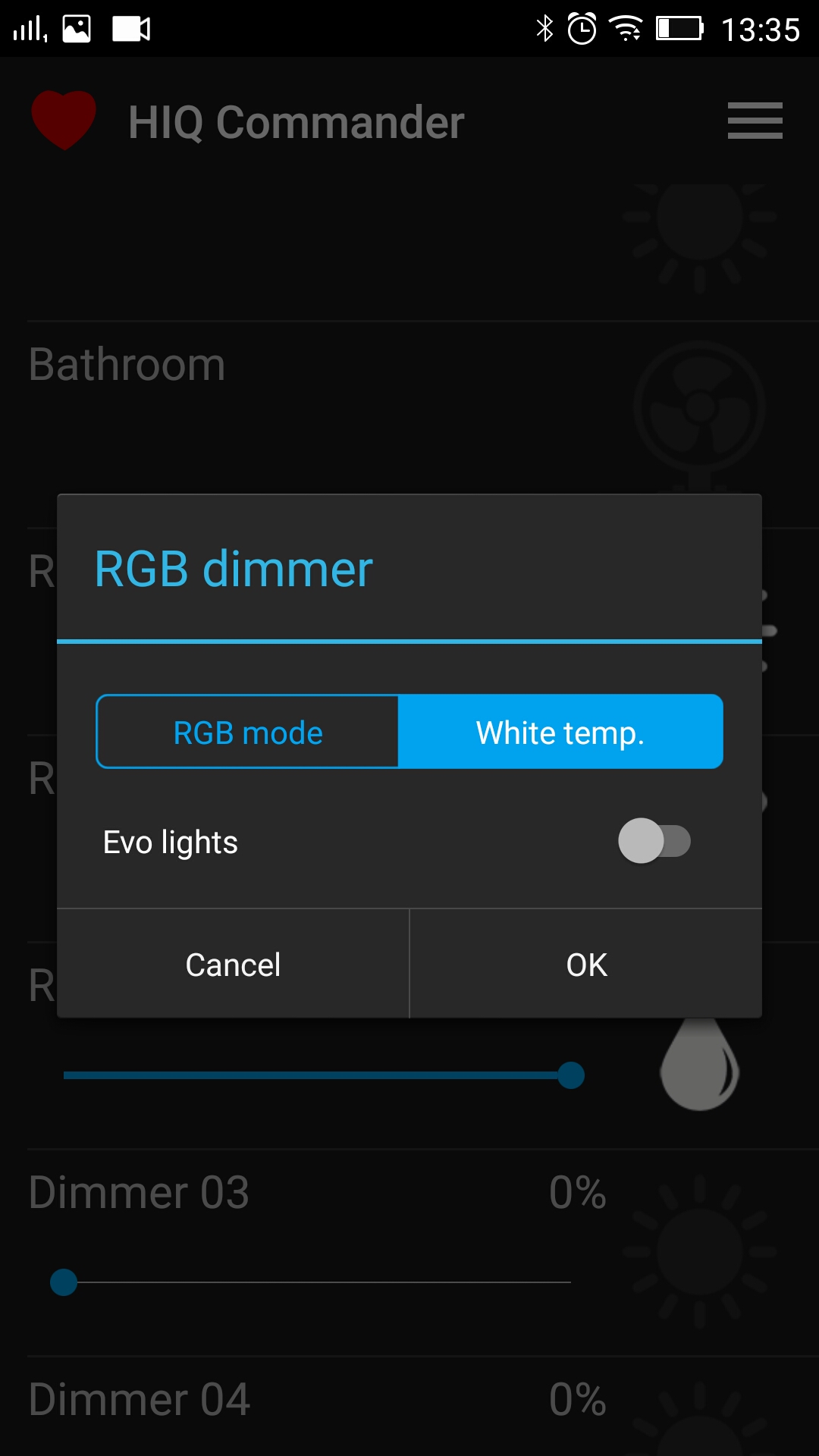

Properties - RGB dimmer
Select “RGB” or “White temperature” mode. Enable/disable “Color cycling” or “Evo lights”.
 |

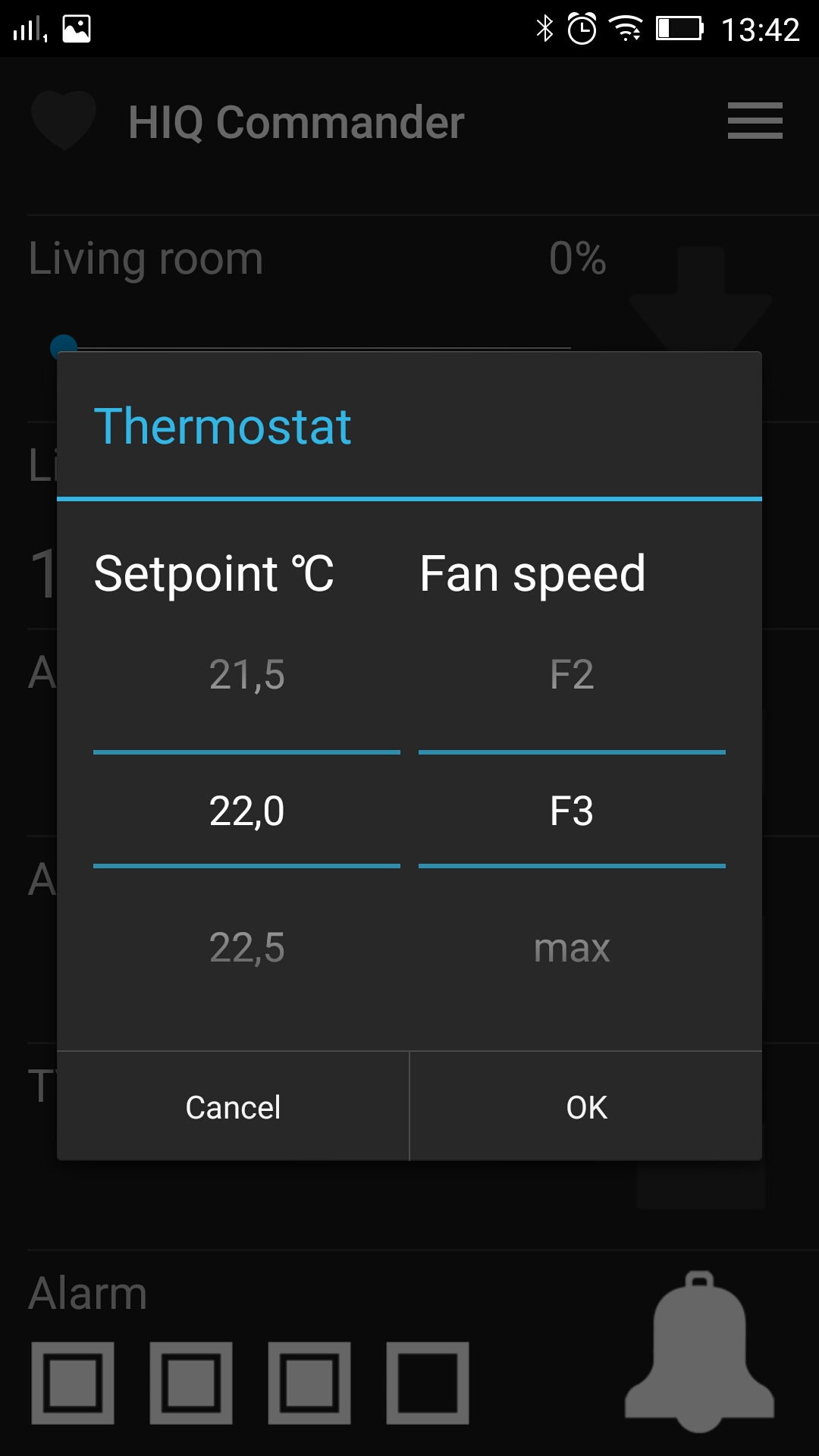

Properties - Thermostat
“Setpoint” and “Fan speed” selection.
 |

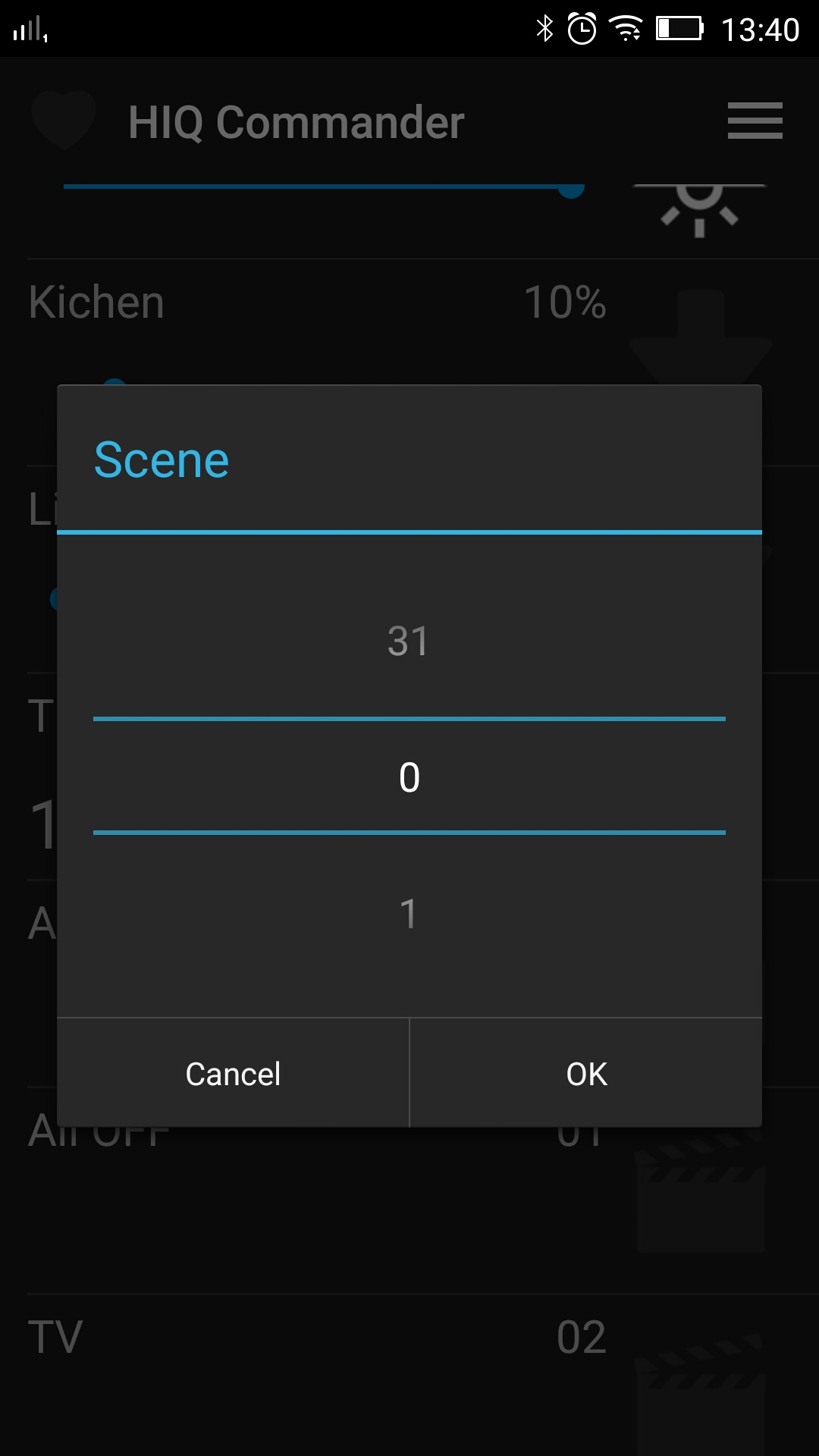

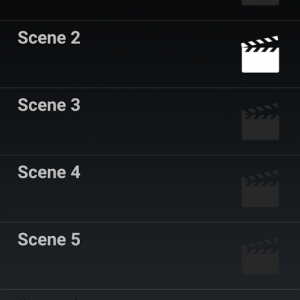

Properties - Scene
Select scene 0 – 31 to be controlled with that object.
 |

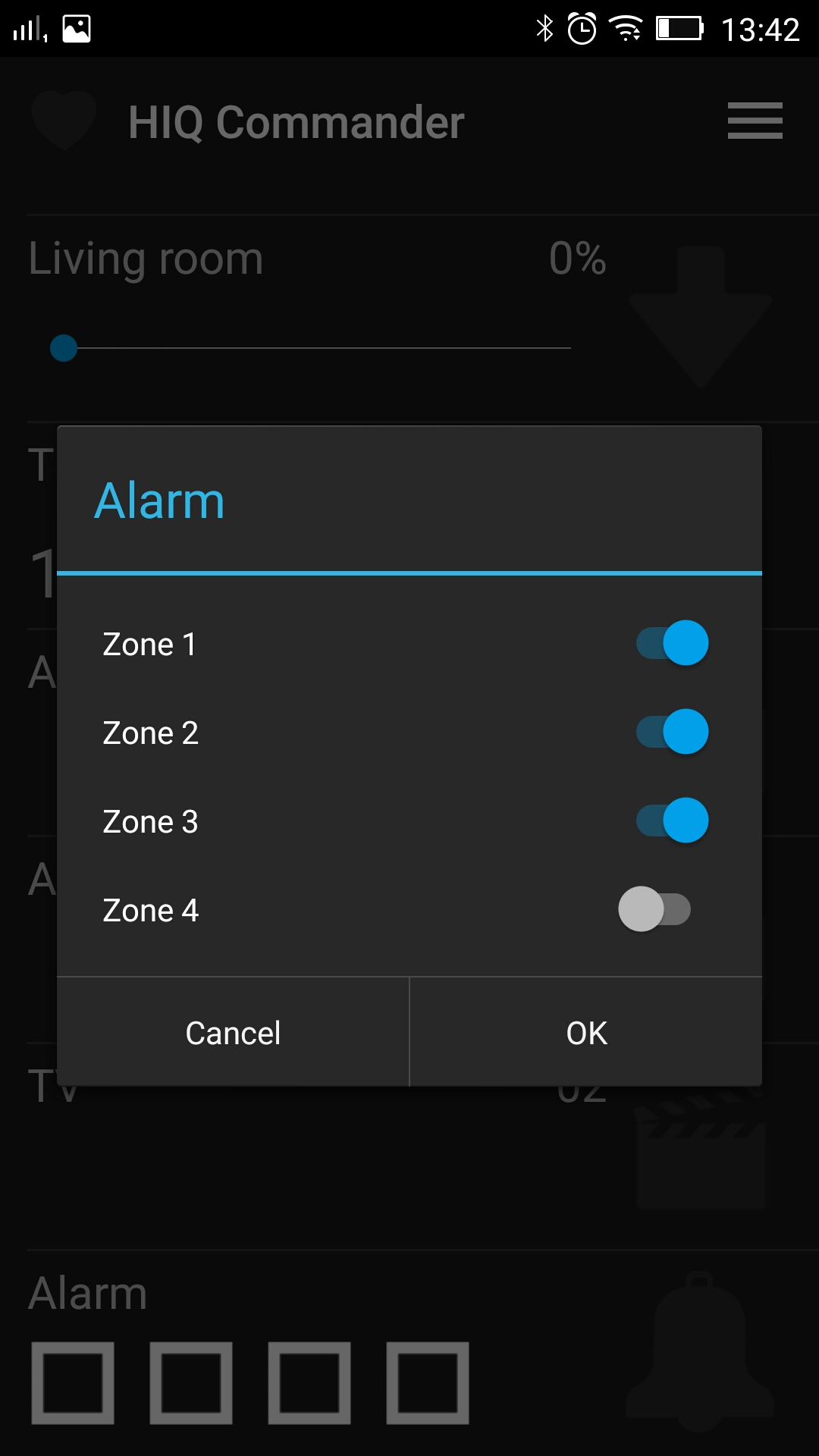

Properties - Alarm
Select which zones will be included in alarm.
Zones are configured in HIQ Configurator.
 |

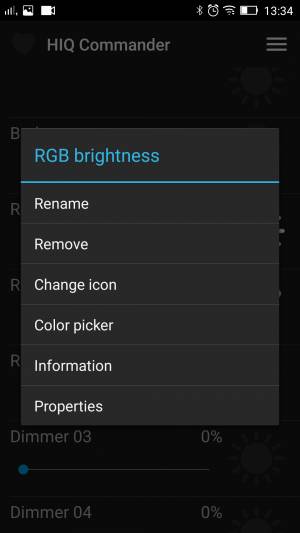

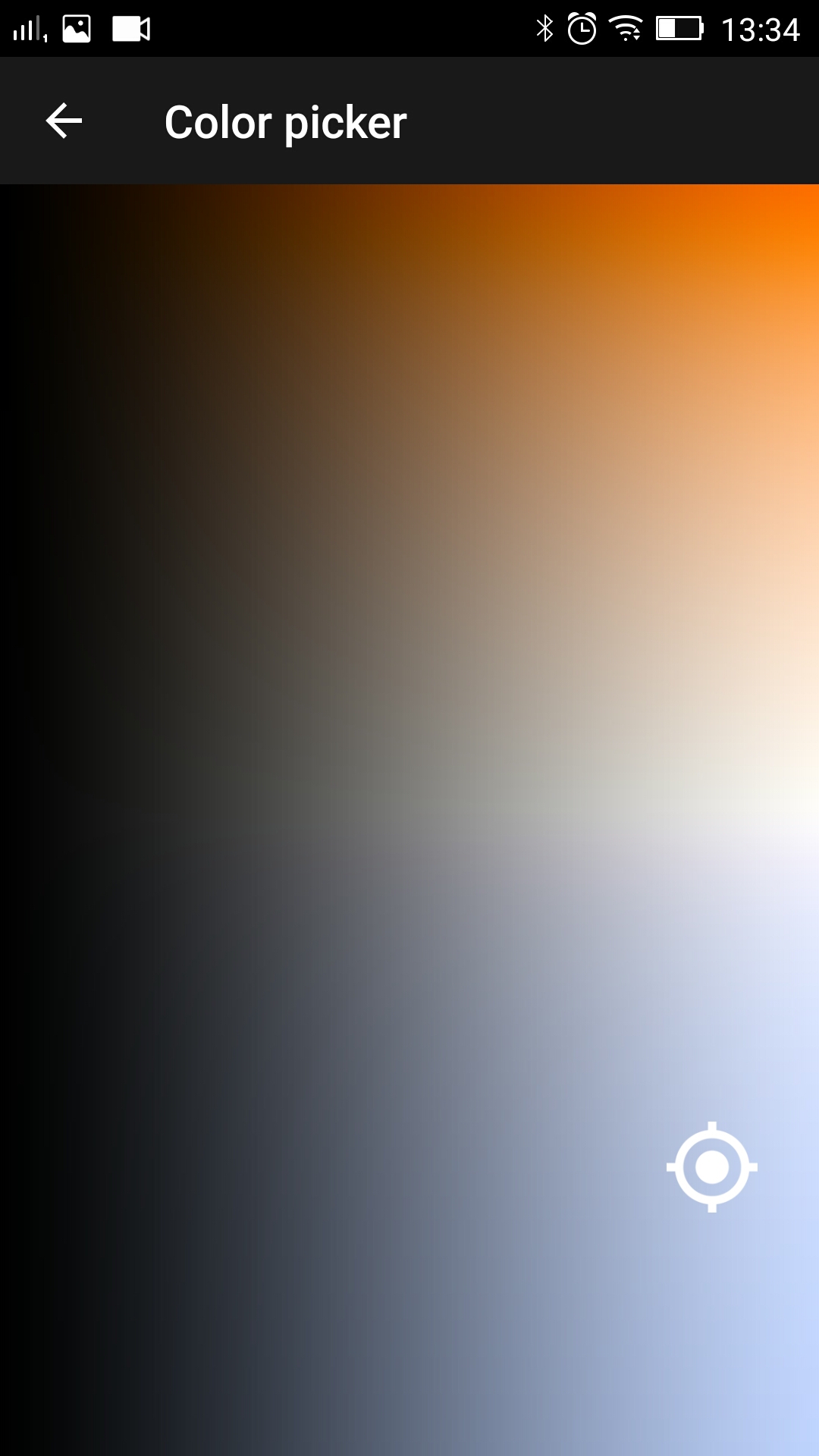

RGB Dimmer - Color picker
Select color or white temperature and brightness with Color picker.
 |
Finished configuration
 |

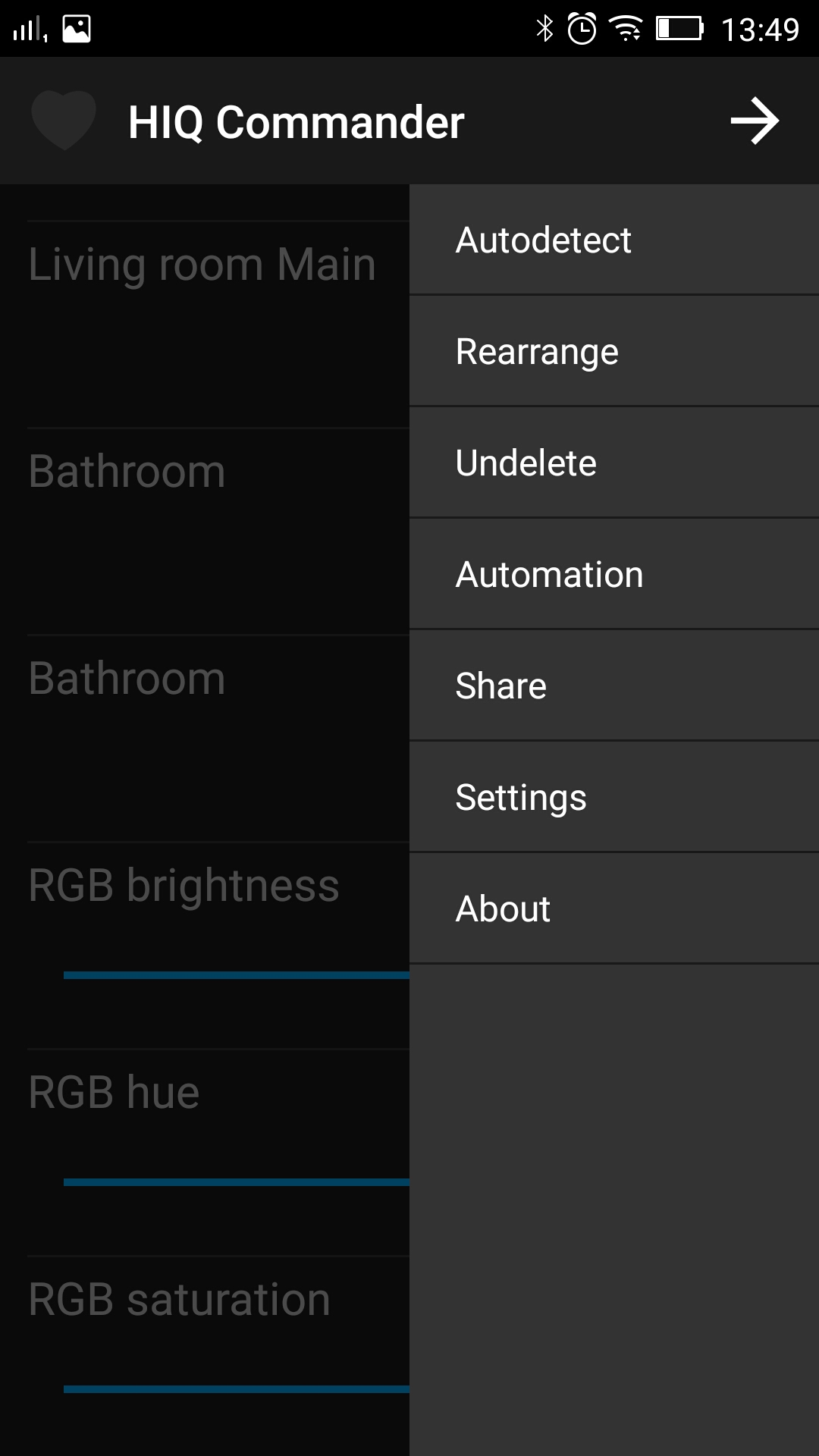

Menu
Make new “Autodetect” (new-another system or hardware change).
“Rearrange” your objects.
“Undelete” removed objects.
“Automation” settings.
”Share” your Configuration.
Additional “Settings”.
“About”.
 |

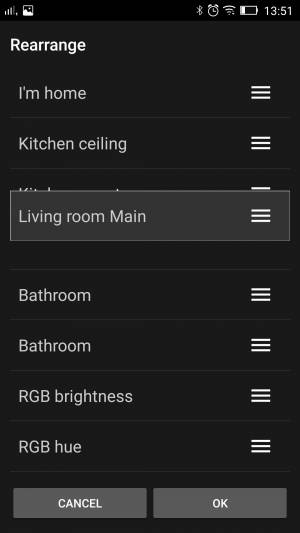

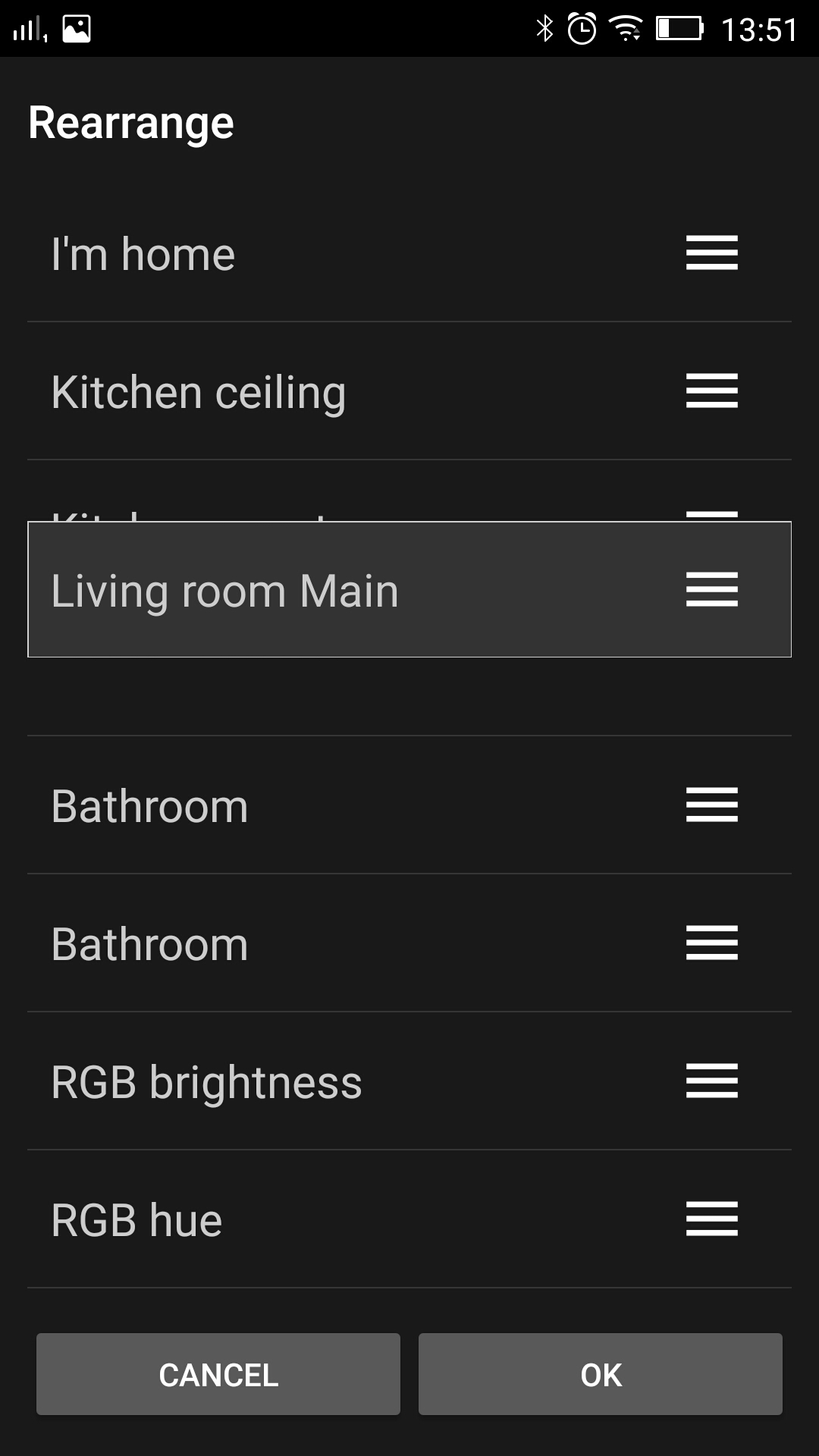

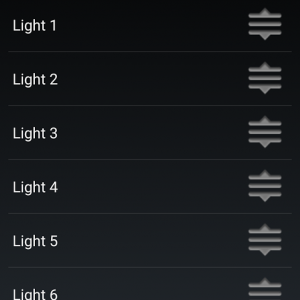

Rearrange
Rearrange (long press and drag) your objects to optimally suit your needs.
 |

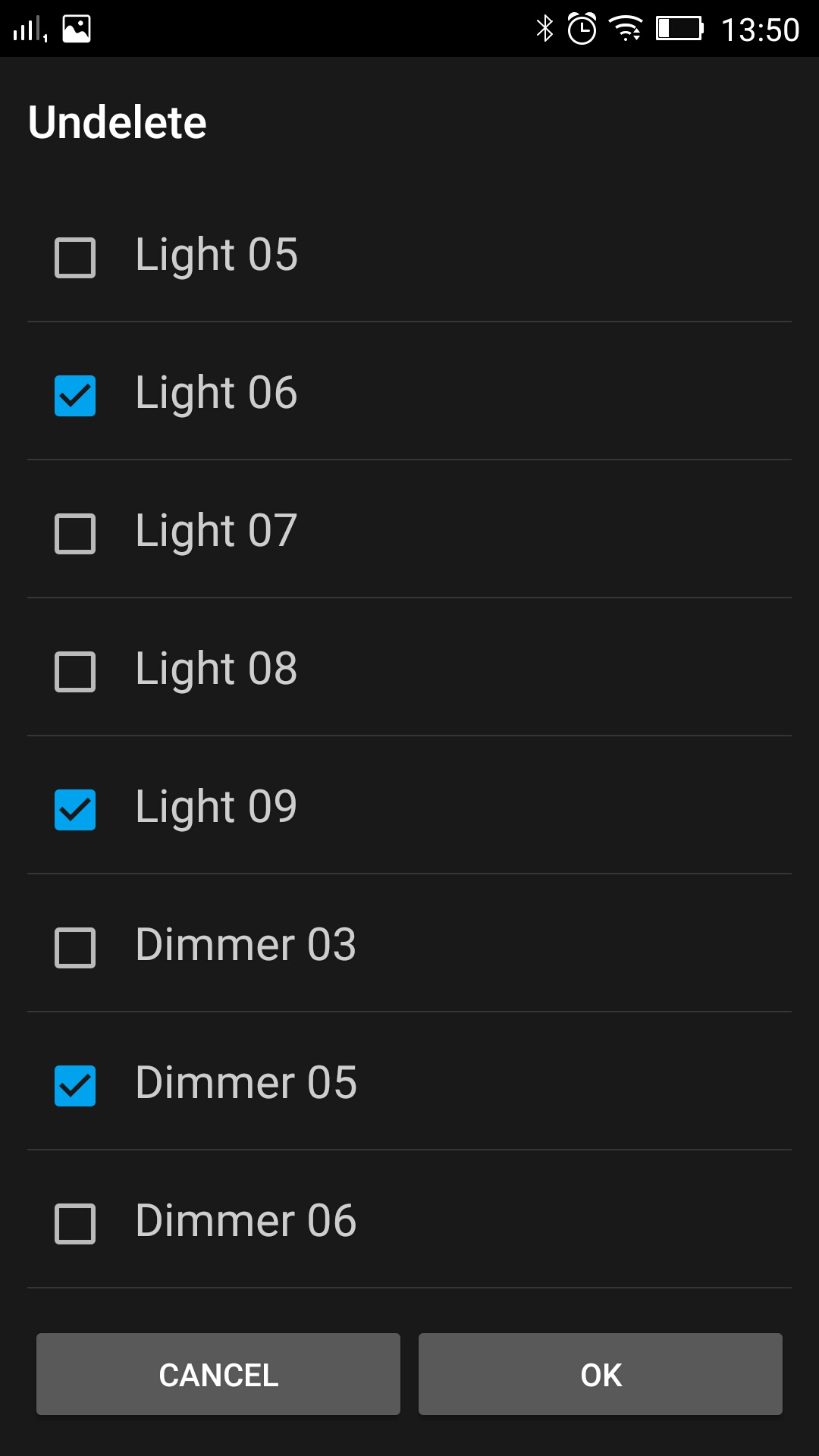

Undelete
Mark removed objects and undelete them.
 |

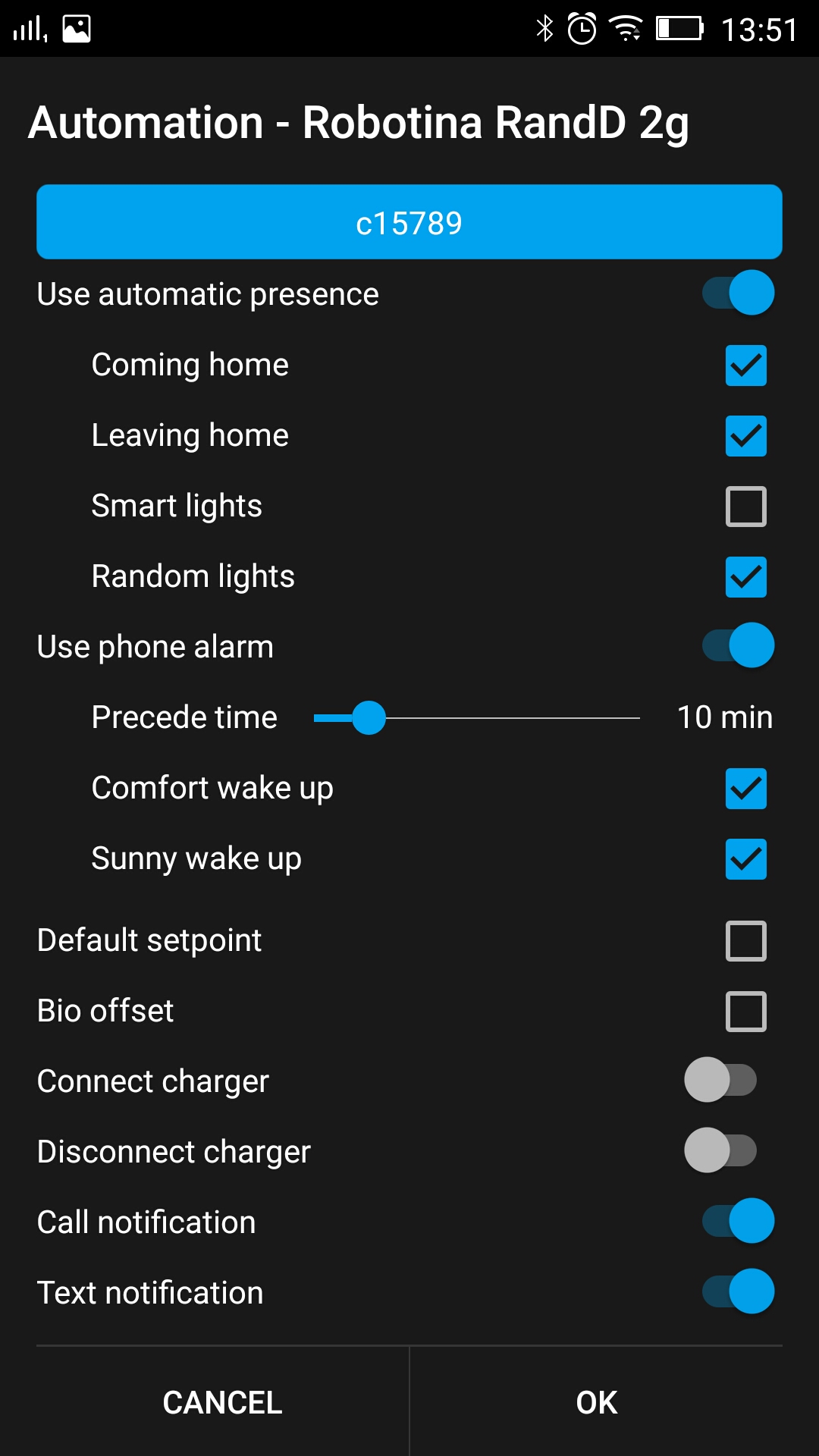

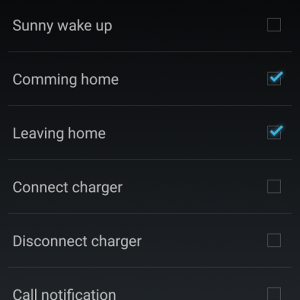

Automations
Enable-disable and set automations.
In first line select desired HC (NAD number).
Can be enabled/disabled on separate smartphones.
Valid for 1 smartphone and all HC.
Can be enabled/disabled on separate HC.
Valid for all smartphones and 1 HC.
 |

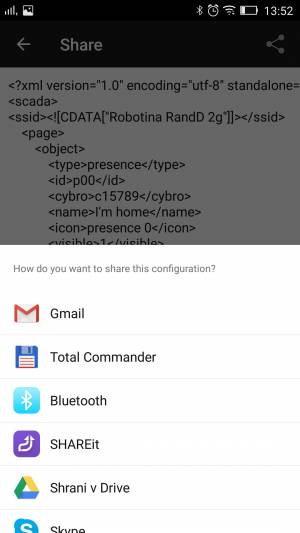

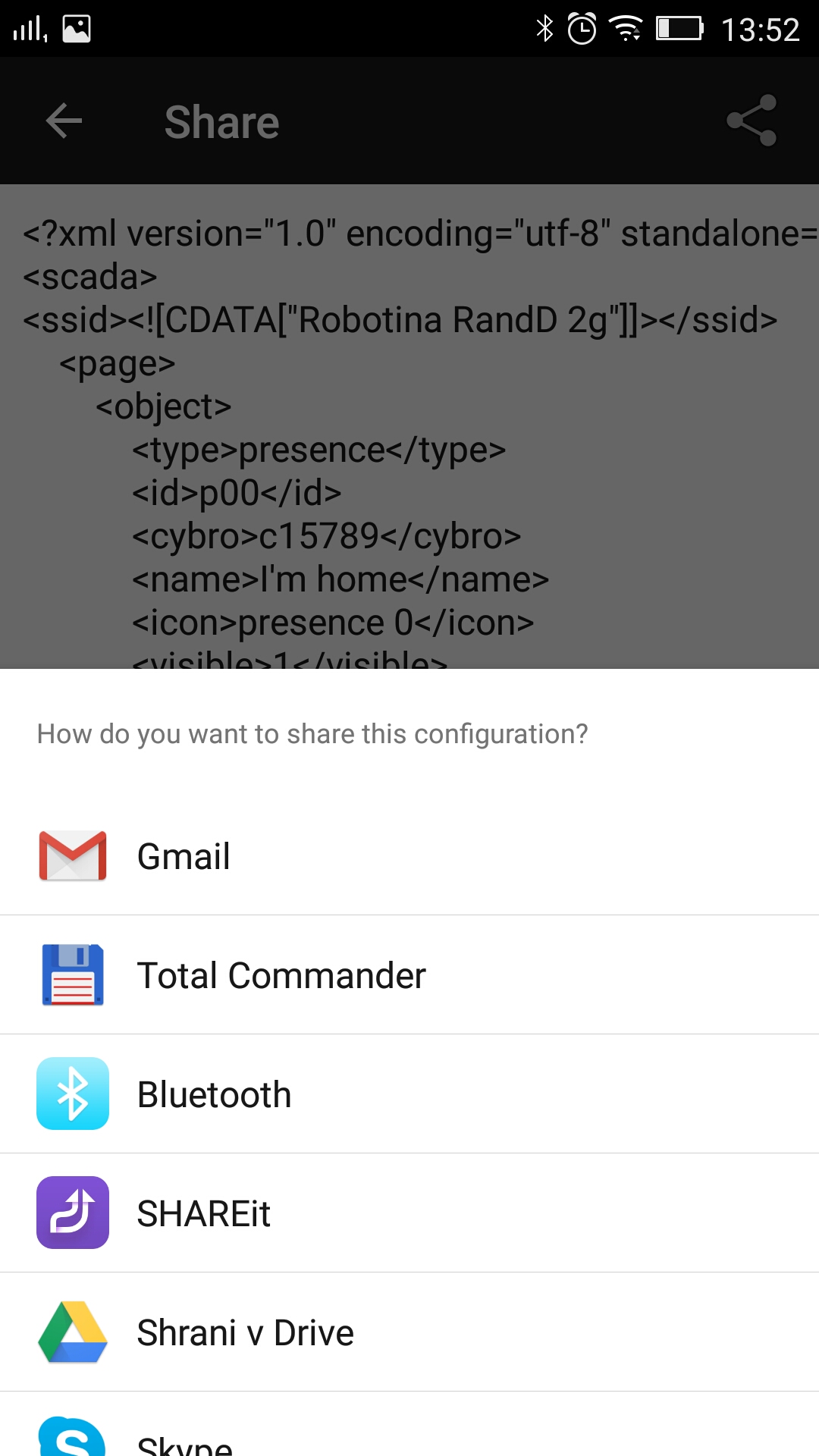

Share
Share your favourite configuration with other users or devices.
Press share button and select your sharing path.
Accept in another device and open with HIQ Commander.
 |

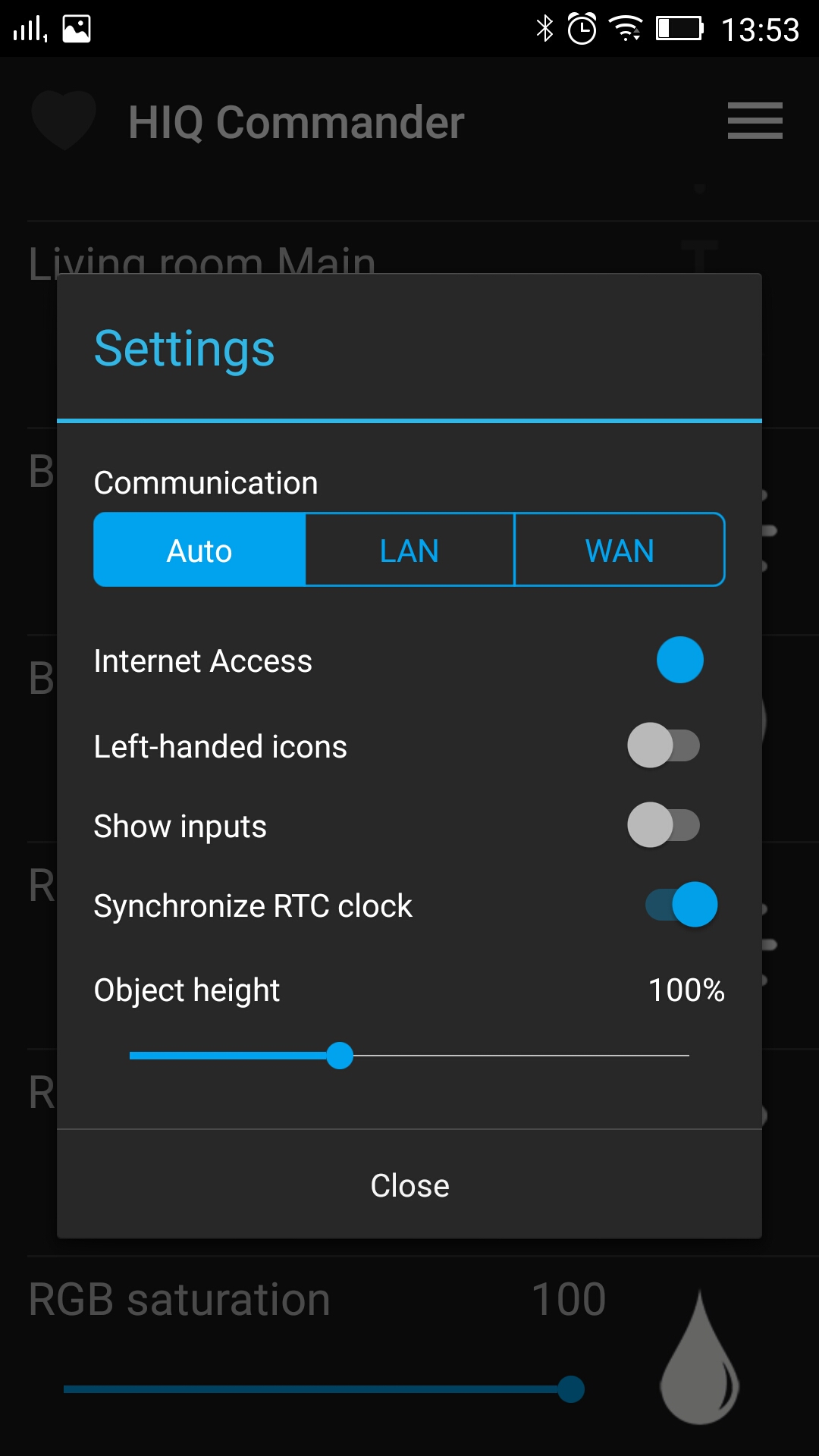

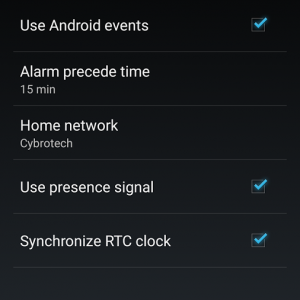

Settings
Communication:
- Auto – automatic switching between local network and internet (recommended).
- LAN – (Local Area Network) will work only in local network.
- WAN – (Wide Area Network) will always work through internet.
Internet access: Can be enabled (blue dot shows that it is enabled). Can be disabled in HIQ Configurator.
Left-handed icons: Object icons on the left side.
Show inputs: Show input state (blue dot – button is pressed or signal is present).
Synchronize RTC clock: Clock on the HC will be synchronised with smartphone clock.
Object height: Adapt object height to your phone resolution and your preferences.
 |

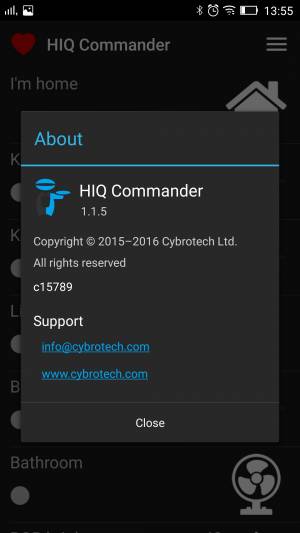

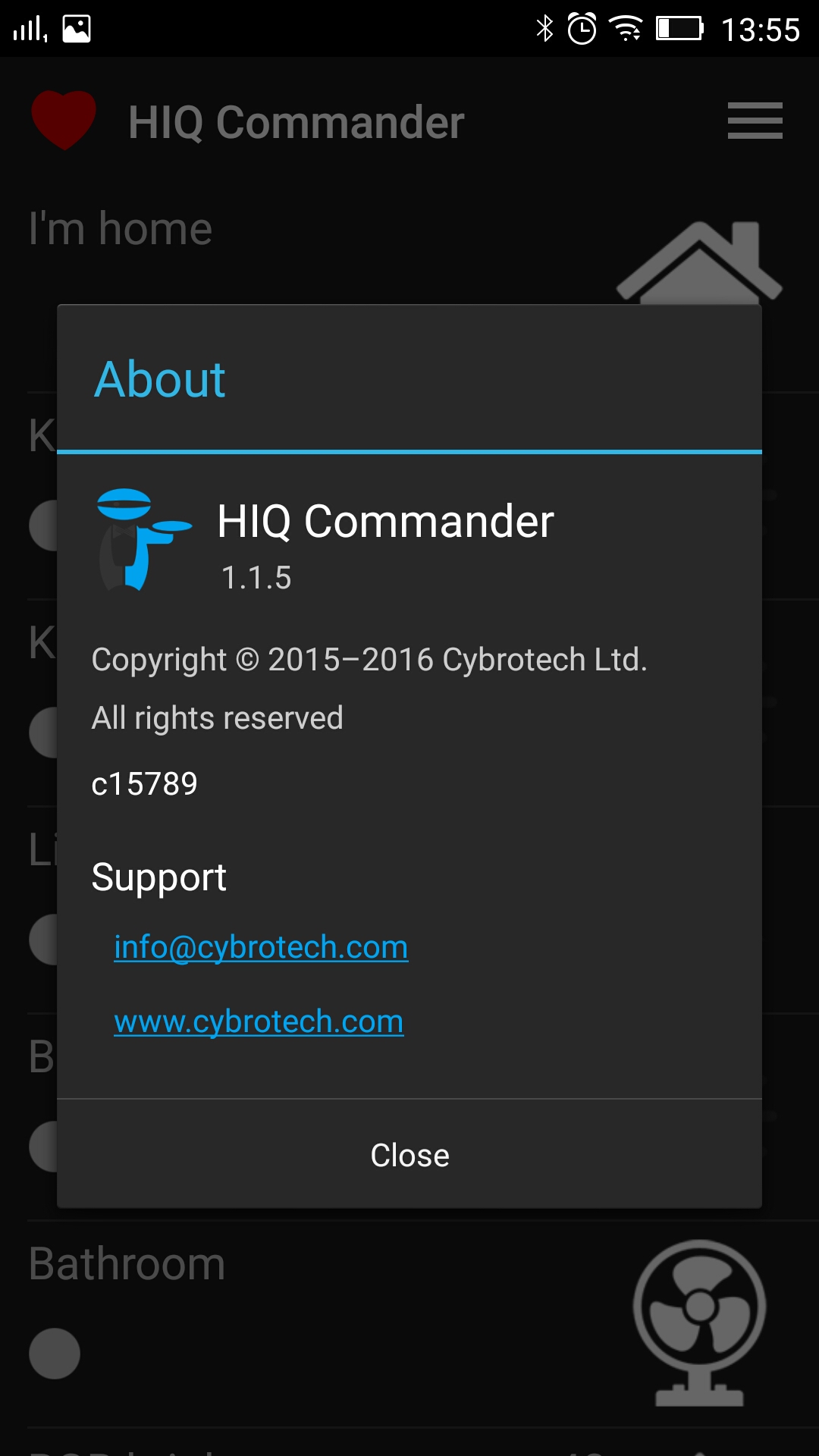

About
Use HIQ commander with custom application
Following article describes how to use HIQ Commander with custom CyBro application.
