DALI dimmer
ballast controller for 8 DALI groups
| Model number: | LD-D8-IQ |
|---|---|
| Mounting: | DIN rail, 2M / 35mm |
| Dimensions: | 36×108×58mm |
Applications
- dimmable lights with DALI bus compatible ballast
Features
- 2 direct controlled groups (push-buttons) + 6 controlled from scene/app or from push button on LC-10-IQ, HC-IQ or Cybro-3/MC
- maximum 64 DALI ballasts
- internal DALI power source - no additional power source needed
General description
The DALI dimmer LD-D8-HIQ is hIQ module capable of controlling up to 8 individual DALI groups. Integrated DALI power supply can power up to 64 DALI ballasts. First two DALI channels are directly controlled with push-buttons connected to module digital inputs. Module can manage additional 6 DALI groups for mood-lighting, which can be controlled from applications.
Technical specification
| Analog inputs: | 10k / 1-10 V; auto-range |
| Digital inputs: | internal pull-up, 12V, 2mA |
| Multi-sensor input: | Philips LRI8133, RJ12 |
| DALI output: | max. 64 ballasts/200mA |
| Power supply: | 24V/35mA (235mA with DALI) |
| Ingress protection: | IP20 |
| Operating temperature: | 0..45°C |
| Storage temperature: | -20..75°C |
| Relative humidity: | 0..95% n/c |

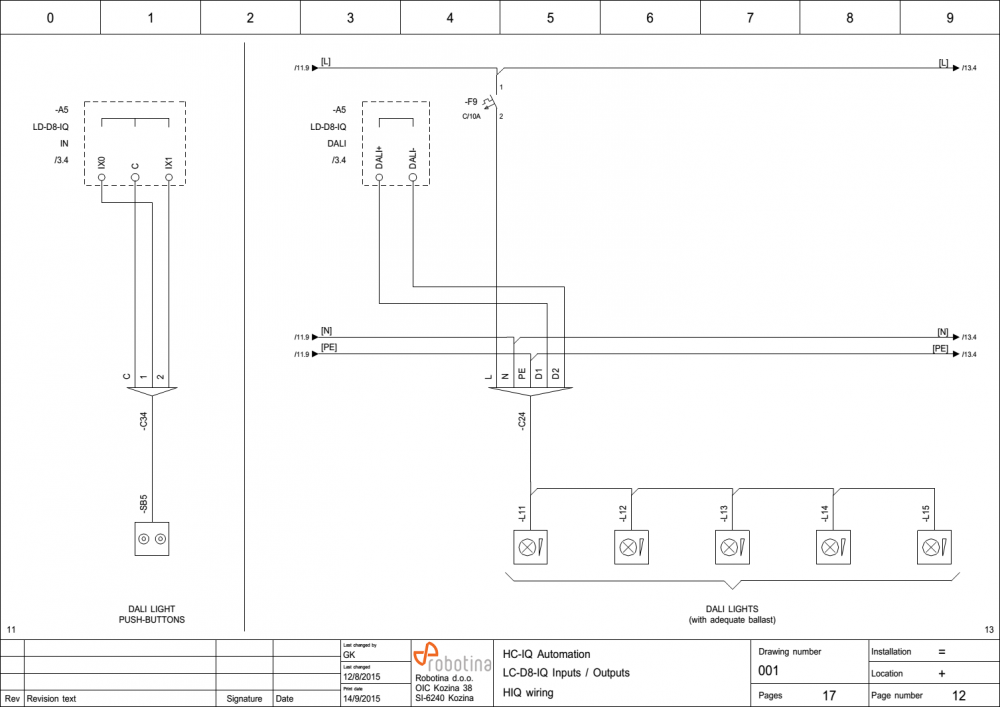

Terminals
| DALI group 1 push-button | IX0 | 1 | Digital input 0 | 4 | Not connected | |||
|---|---|---|---|---|---|---|---|---|
| Push-buttons common | C | 2 | Inputs common | DALI bus | 8 | DALI+ | DALI bus | |
| DALI group 1 push-button | IX1 | 3 | Digital input 1 | 9 | DALI- |
