LED power supply
 |  |  |  |
|
| Non dimmable | LP-24-100 | LP-24-240 | LP-24-480 | LP-24-600 |
|---|---|---|---|---|
| Dimmable | LP-24-100-D | LP-24-240-D | LP-24-480-D | LP-24-600-D |
Technical specification
| Non dimmable | LP-24-100 | LP-24-240 | LP-24-480 | LP-24-600 |
|---|---|---|---|---|
| Dimmable (3 in 1)* | LP-24-100-D | LP-24-240-D | LP-24-480-D | LP-24-600-D |
| Type | Constant voltage | |||
| Input voltage | 100-305 VAC | 90-305 VAC | ||
| Power | 100 W | 240 W | 480 W | 600 W |
| Output voltage | 24 VDC | |||
| Max output current | 4 A | 10 A | 20 A | 25 A |
| IP rating | IP65 | |||
* Dimmable (3 in 1): 0 ~ 10VDC, or 10V PWM signal or potentiometer

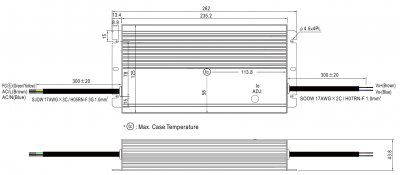

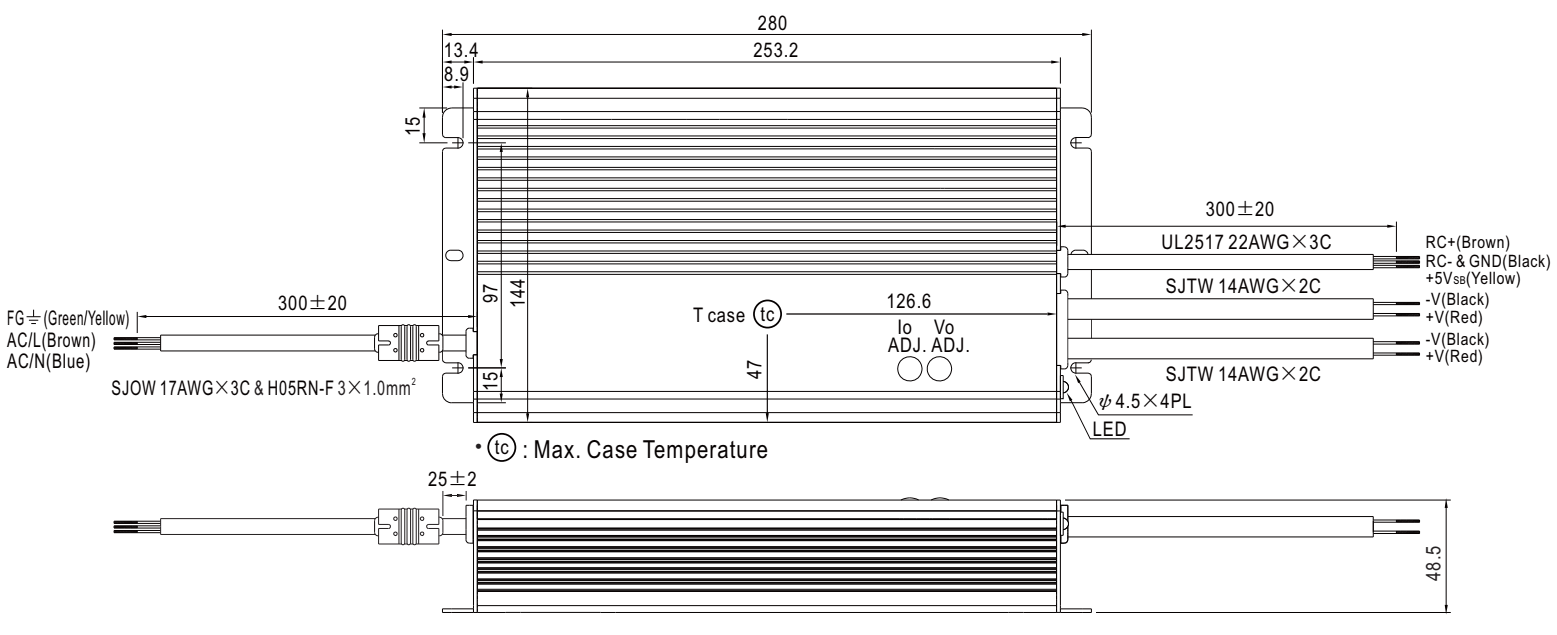

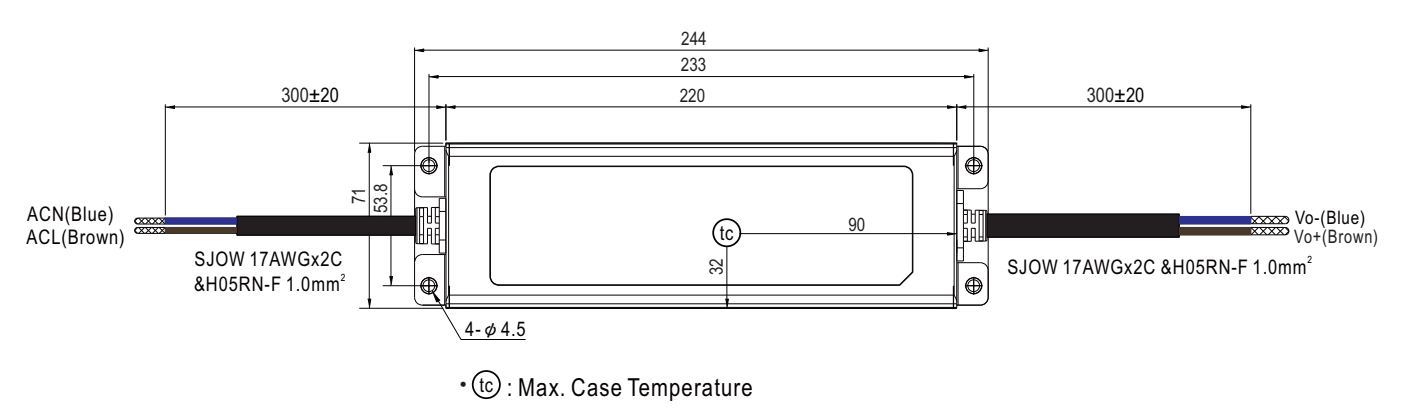

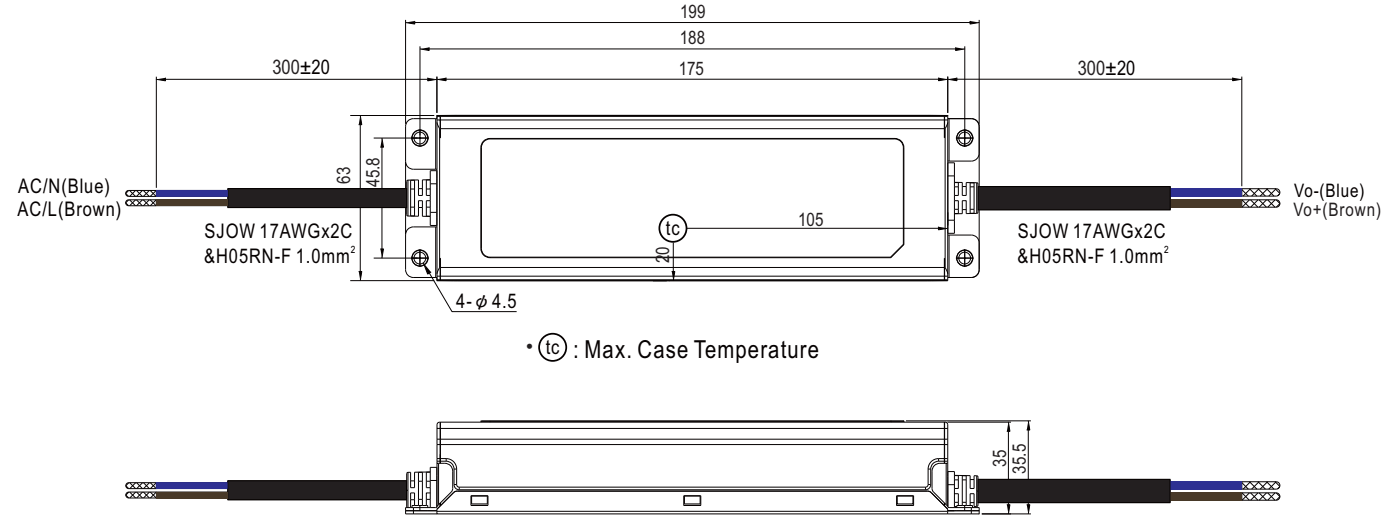

Dimensions
| LP-24-100 |  |
|---|---|
| LP-24-100-D | |
| LP-24-240 |  |
| LP-24-240-D | |
| LP-24-480 |  |
| LP-24-480-D | |
| LP-24-600 |  |
| LP-24-600-D |
