Electronic thermostat
electronic thermostat
| Model number: | TH-1M-IQ |
|---|---|
| Mounting: | on-wall, 3M rectangular box |
| Dimensions: | 122×80×23mm |
Applications
- room / heating zone thermostat
Features
- alternate setpoint
- fan options:
- manual fan speed
- fan speed limits
- fan-max with time limitation
- night mode
- various sensor options:
- internal
- external
- remote
General description
TH-1-IQ module belongs to room/zone thermostat controllers. It can be used for any heating and/or cooling system including: fan-coils, hot water or electrical radiators, ceiling fans, floor/ceiling heating/cooling, split AC. TH series provide maximum comfort and energy saving functionality. Set-points are selectable on the unit or through other devices. Advanced functionality including smart-phone operation, internet operation, scheduling, HIQ automations, automatic weather response and more are provided when connected to HIQ Home Controller and HIQ universe.
Technical specification
| Window switch input: | internal pull-up 12V, 2mA |
| Temperature measurement: | internal or external ES/ES-A |
| Power supply: | 24V/15mA |
| Ingress protection: | IP20 |
| Operating temperature: | 0..45°C |
| Storage temperature: | -20..75°C |
| Relative humidity: | 0..95% n/c |

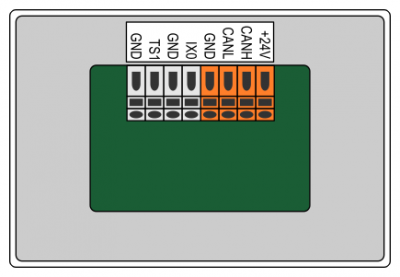

Terminals
| IEX2 BUS | +24V | IEX2 bus |
|---|---|---|
| CANH | ||
| CANL | ||
| GND | ||
| Window magnetic switch | IX0 | Digital input |
| GND | ||
| External temperature sensor ES / ES-A | TS1 | Temperature sensor input |
| GND |
When installing: “Autoaddress” button will link FC-1-IQ unit with lowest serial number with thermostat with lowest serial number and so on.
